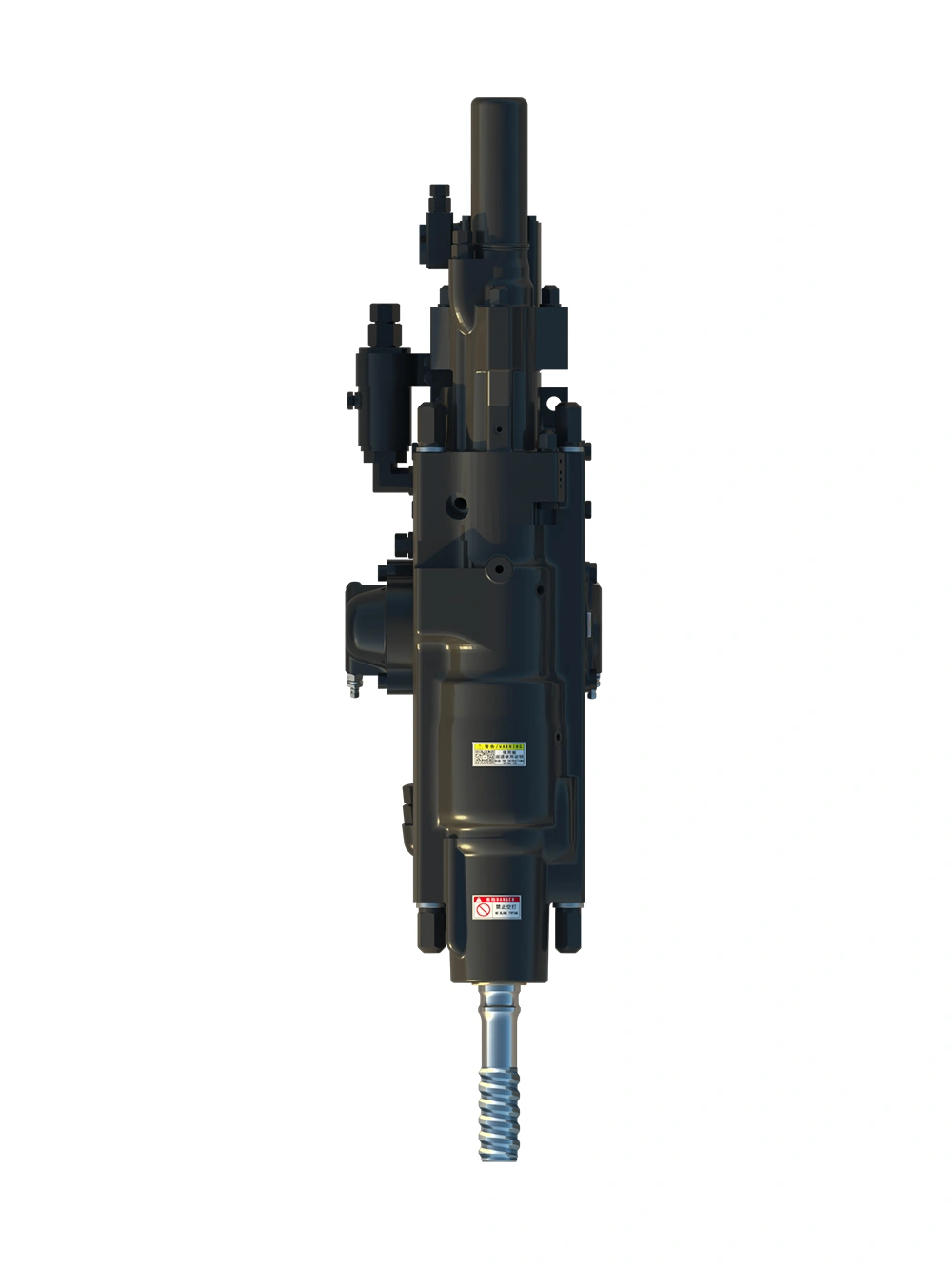

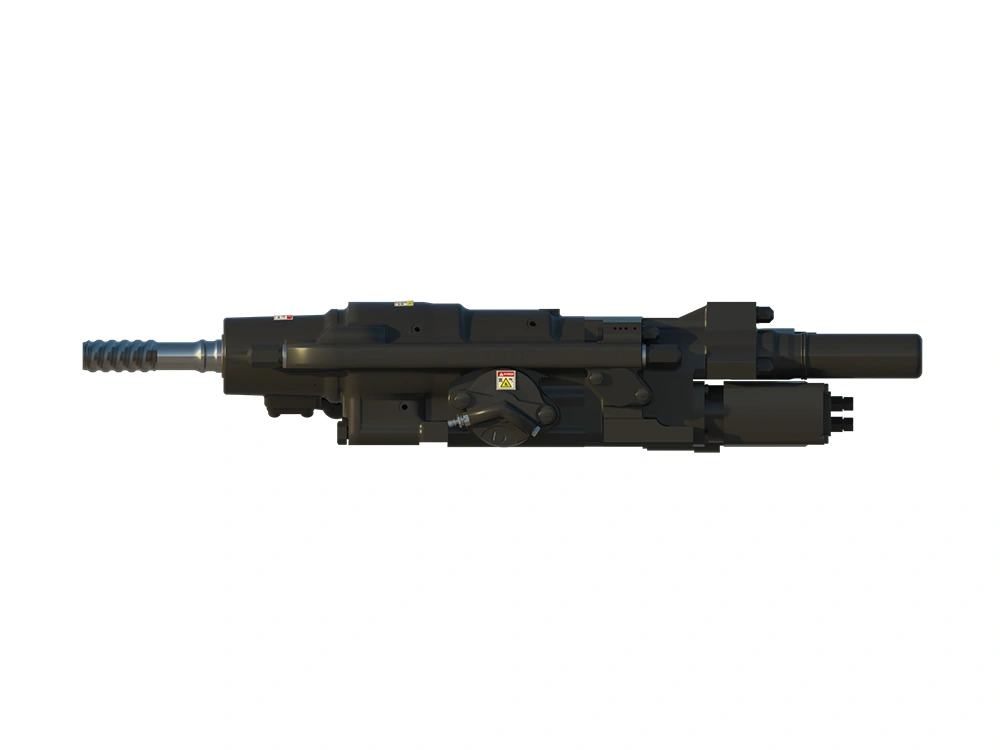

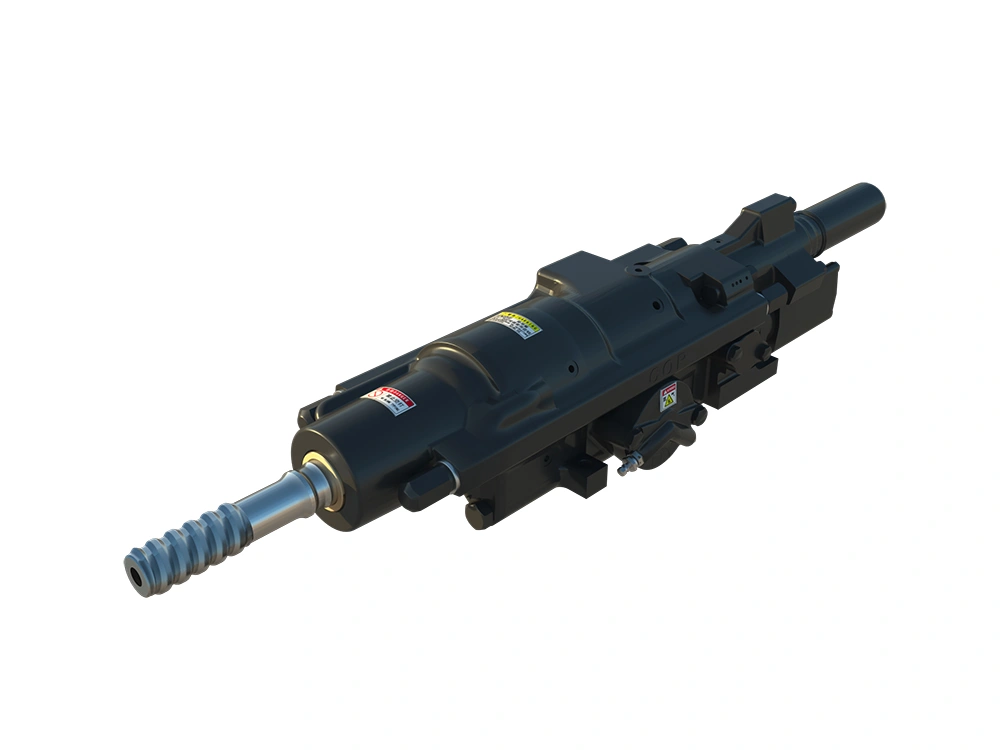

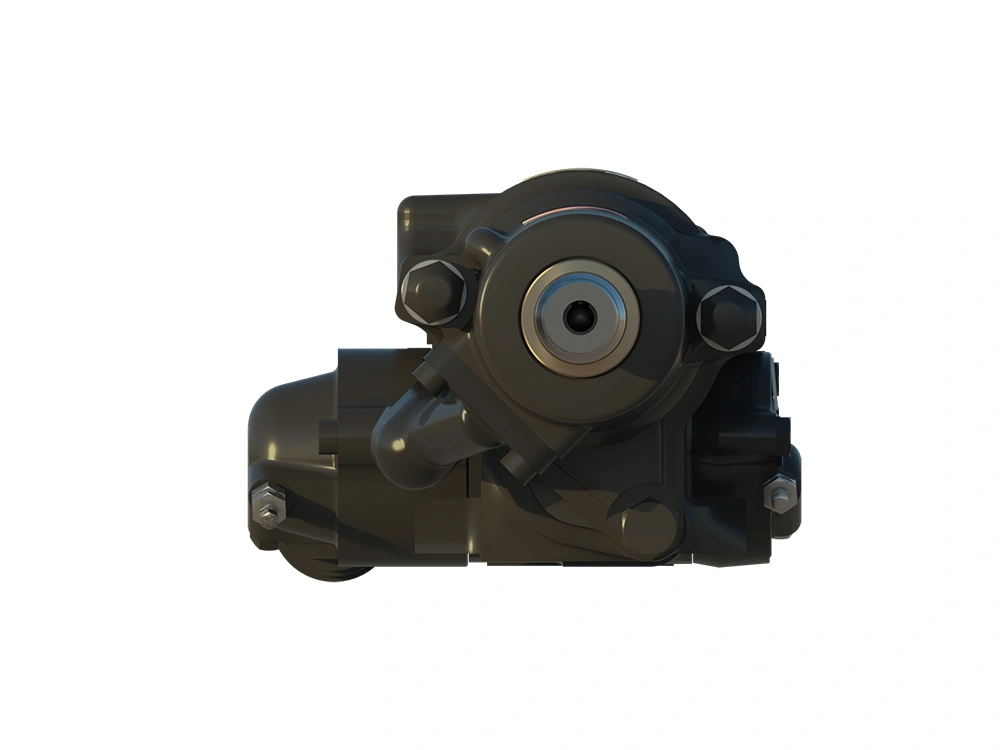

COP1838+
Hydraulic Rock Drill Drifter
Hydraulic Drifter and Rock-drilling- Impact Output Power: 18kW
- Drilling Diameter: Ø38-64mm
The COP1838+ hydraulic rock drill is a high-efficiency rock drilling and excavation equipment designed for various hard rock and underground geological formations. This drifter features reliable performance, stability, and durability, making it suitable for mining, construction, and underground engineering, providing comprehensive rock processing solutions for users.
Request a Quote →
Product Parameters
| Max. Impact Output Power | 18kW |
| Impact Frequency | 60Hz |
| Max. Impact Pressure | 230bar |
| Impact Oil Flow | 75-92L/min |
| Max. Rotation Torque | 1000Nm |
| Rotation Speed | 0-215rpm |
| Max. Rotation Pressure | 210 bar |
| Rotation Oil Flow | 75L/min |
| Drilling Diameter Range | 38-64mm |
| Compatible Shank Adapters | R32/R38/T38 |
| Operating Weight | 170kg |
Accessories

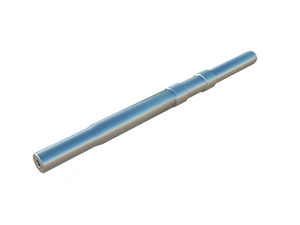

Piston

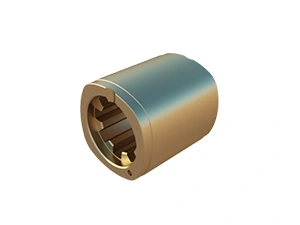

Spline wear sleeve

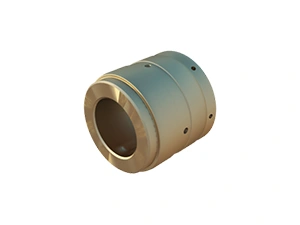

Cylinder copper sleeve

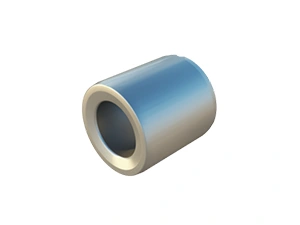

Shank bushing

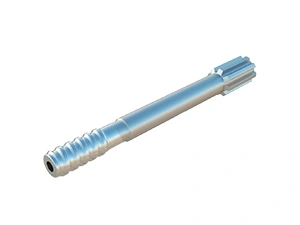

Shank

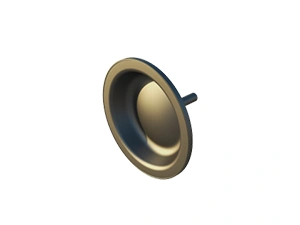

Accumulator diaphragm
