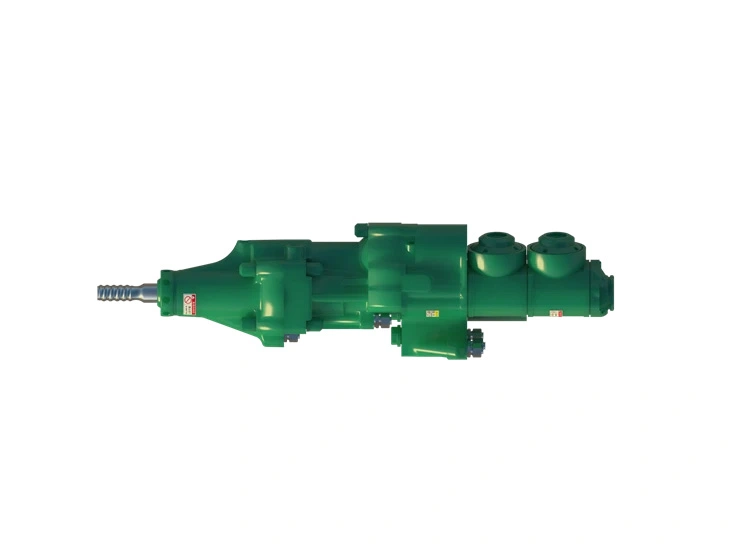

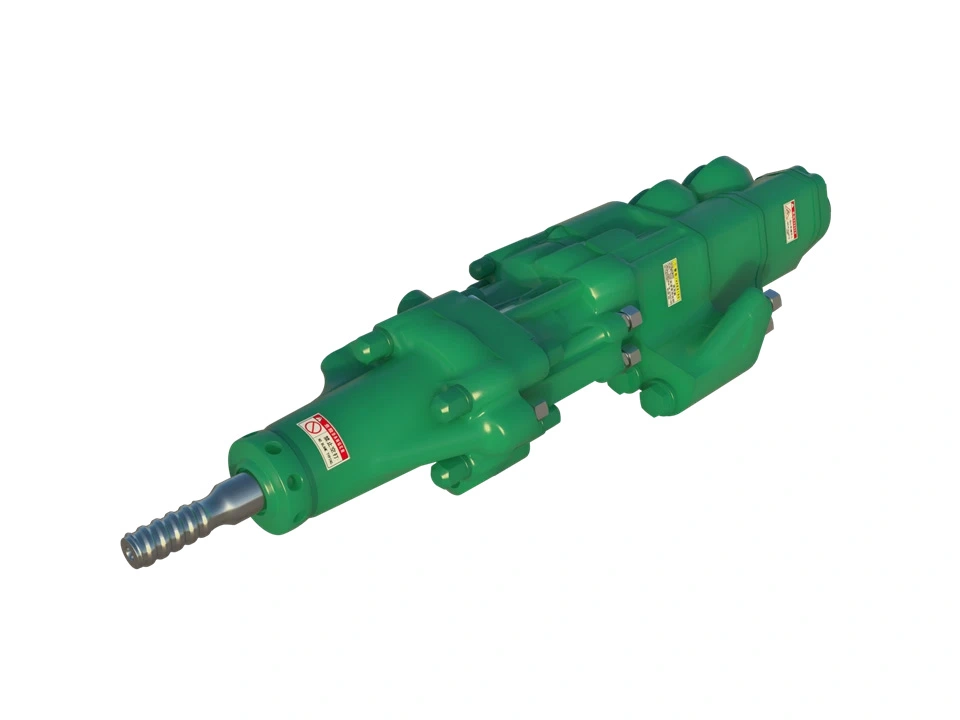

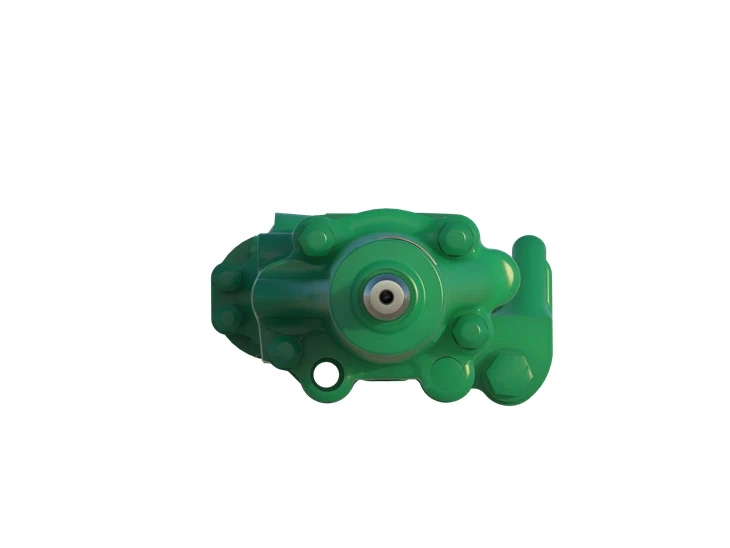

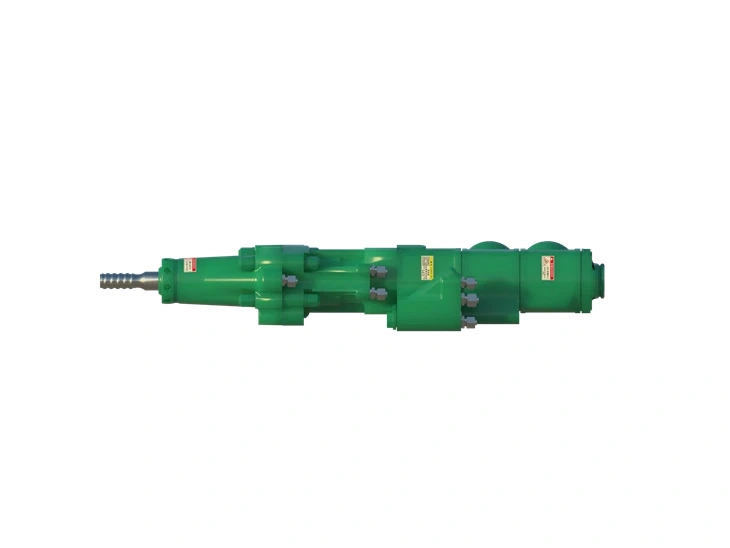

HC109E
Hydraulic Rock Drifter
Rock Splitting and Demolition- Impact Output Power: 19kW
- Drilling Diameter: Ø43-115mm
The HC109E hydraulic drifter offers multiple configurations for front-head materials and structural designs. The stainless steel front-head configuration is engineered for high-humidity or highly corrosive operating environments, providing a significant increase in equipment service life and durability.
Delivering a maximum impact power of 19kW, the hydraulic drifter is optimized for hole diameters ranging from 43mm to 115mm. This power output makes it a versatile solution widely utilized in heavy-duty long-hole drilling within quarries, underground tunneling, and a diverse range of large-scale rock engineering projects.
Request a Quote →

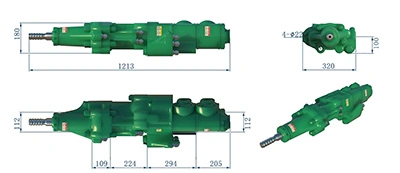

Product Parameters
| Max. Impact Output Power | 19kW |
| Impact Frequency | 48-62Hz |
| Max. Impact Pressure | 135-155bar |
| Impact Oil Flow | 120-135L/min |
| Max. Rotation Torque | 435Nm |
| Rotation Speed | 145-225rpm |
| Max. Rotation Pressure | 140bar |
| Rotation Oil Flow | 60L/min |
| Drilling Diameter Range | Ø43-115mm |
| Compatible Shank Adapters | T38/T45/T51 |
| Operating Weight | 170kg |
Accessories

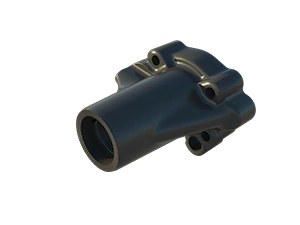

Drill string flushing

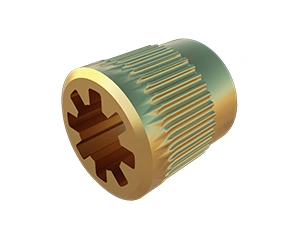

Spline wear sleeve

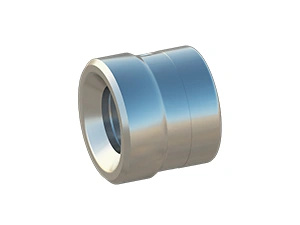

Damper sleeve

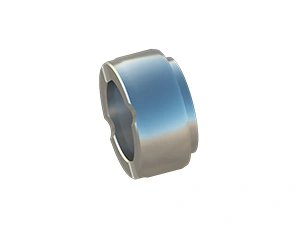

Piston

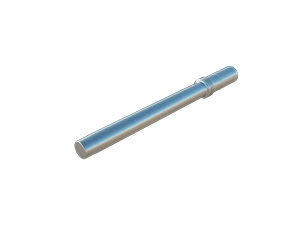

Shank
Shank bushing
Key Features
- The piston can be finely tuned to specific ground conditions and varying hydraulic oil supply parameters.
- Users can select from a wide array of front-head materials and structural shapes to match specific operational needs.
- The drifter features a wide adjustment range for rotation torque and frequency settings.
- Mechanical or hydraulic back-hammering capabilities.
- Extensive application range: from long-hole drilling in quarries to underground tunneling, and from soft soil to hard rock drilling
- Stainless steel front head available for corrosive environments
