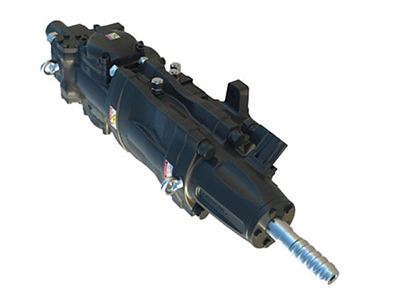

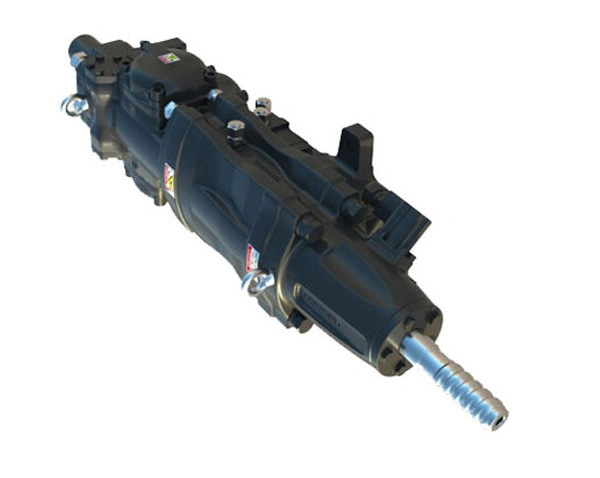

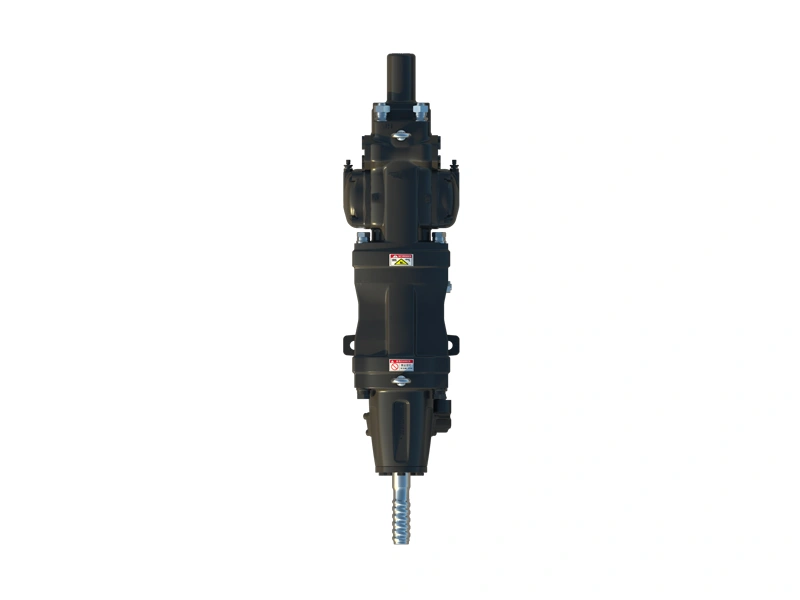

LM16E
Hydraulic Drill Drifter
Non-Blasting Rock Excavation- Impact Output Power: 16kW
- Drilling Diameter: Ø76-89mm
The LEM16E hydraulic drifter is a high-frequency impact hydraulic drifter engineered with an improved rotation mechanism for enhanced torque stability. The drifter unit features an integrated internal oil-mist lubrication system.
Specifically optimized for both underground and surface operations, the LEM16E excels in underground mining and tunneling, open-pit excavation and quarrying, water conservancy, national defense infrastructure, and rock excavation.
The drifter is compatible with R38 and T45 threads, with the T38 shank adapter provided as the standard configuration.
Request a Quote →

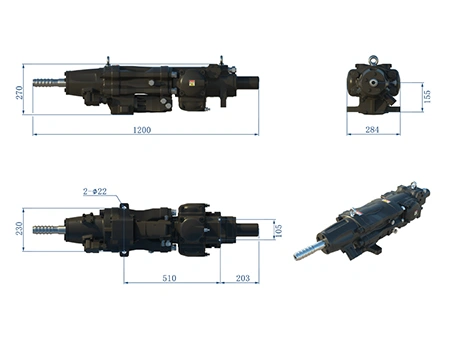

Product Parameters
| Max. Impact Output Power | 16kW |
| Impact Frequency | 50Hz |
| Max. Impact Pressure | 180bar |
| Impact Oil Flow | 65L/min |
| Max. Rotation Torque | 960Nm |
| Rotation Speed | 0-200rpm |
| Max. Rotation Pressure | 120bar |
| Rotation Oil Flow | 60L/min |
| Drilling Diameter Range | 76-89mm |
| Compatible Shank Adapters | R38/T38/T45 |
| Operating Weight | 185kg |
Accessories

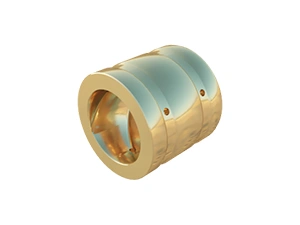

Copper sleeve

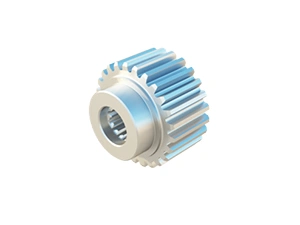

Main drive gear

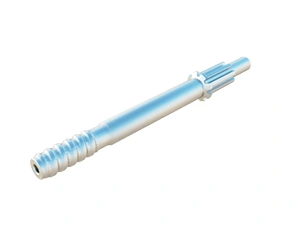

T45 shank

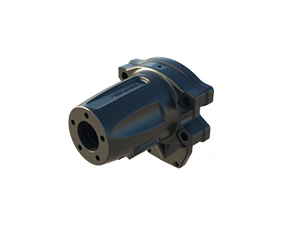

Drill string flushing

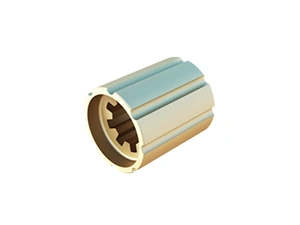

Spline wear sleeve

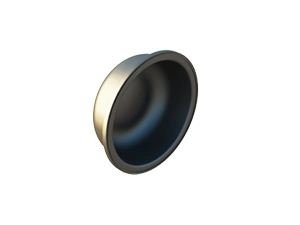

Diaphragm
