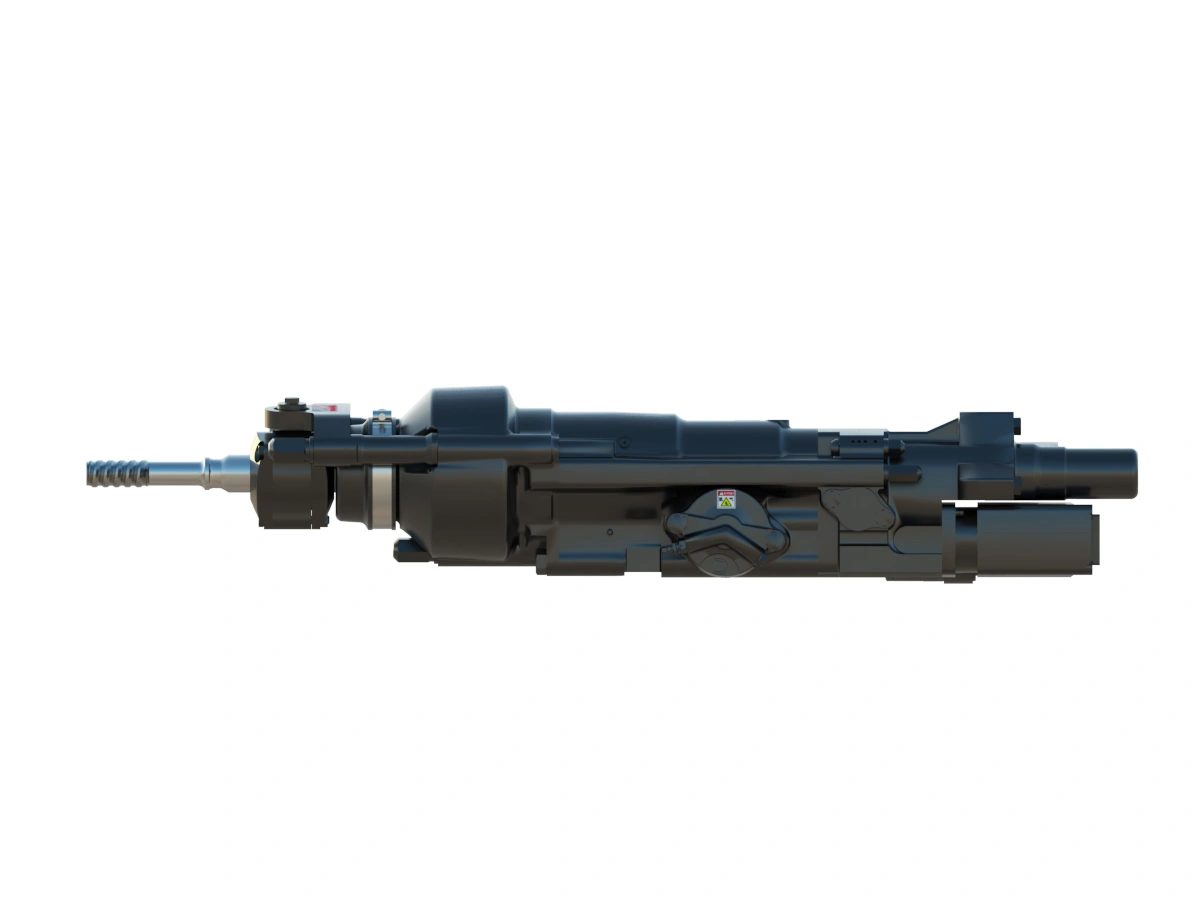

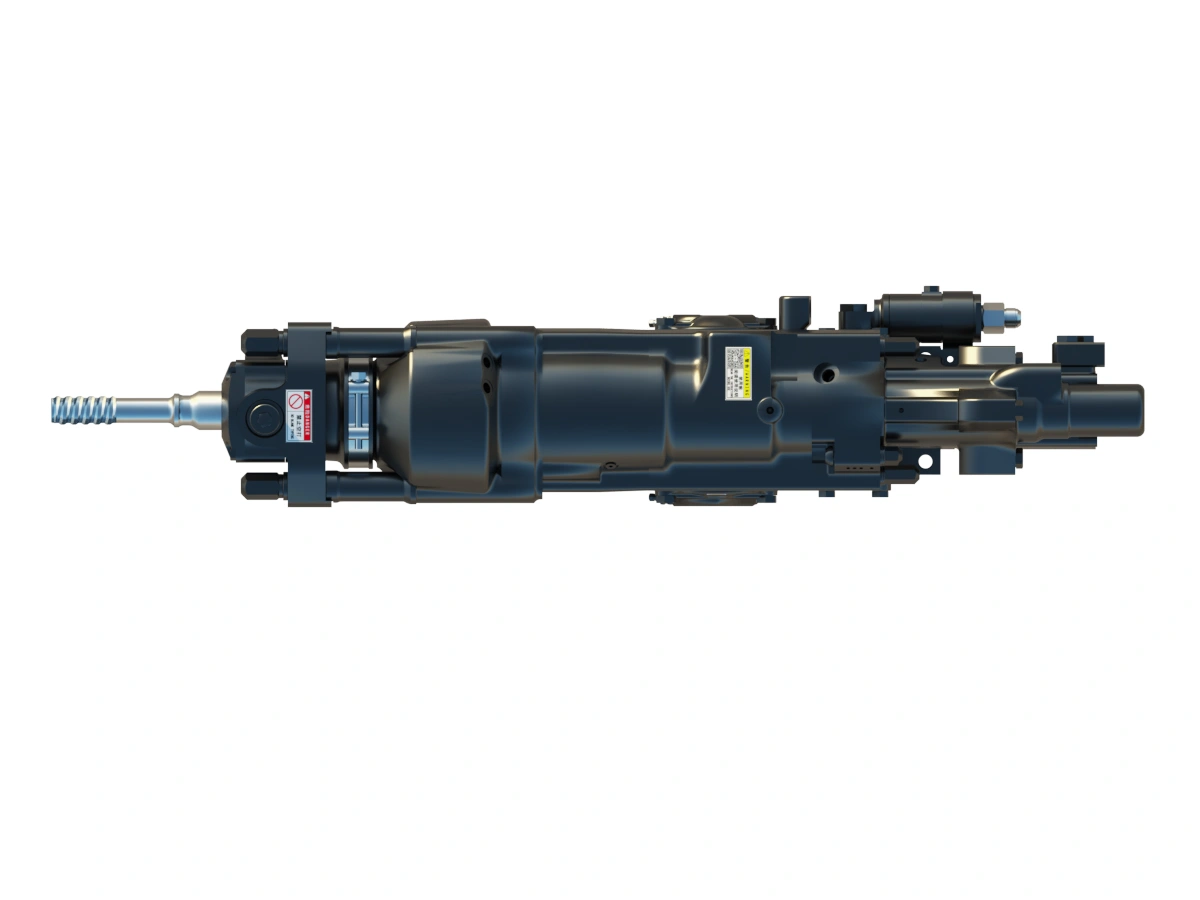

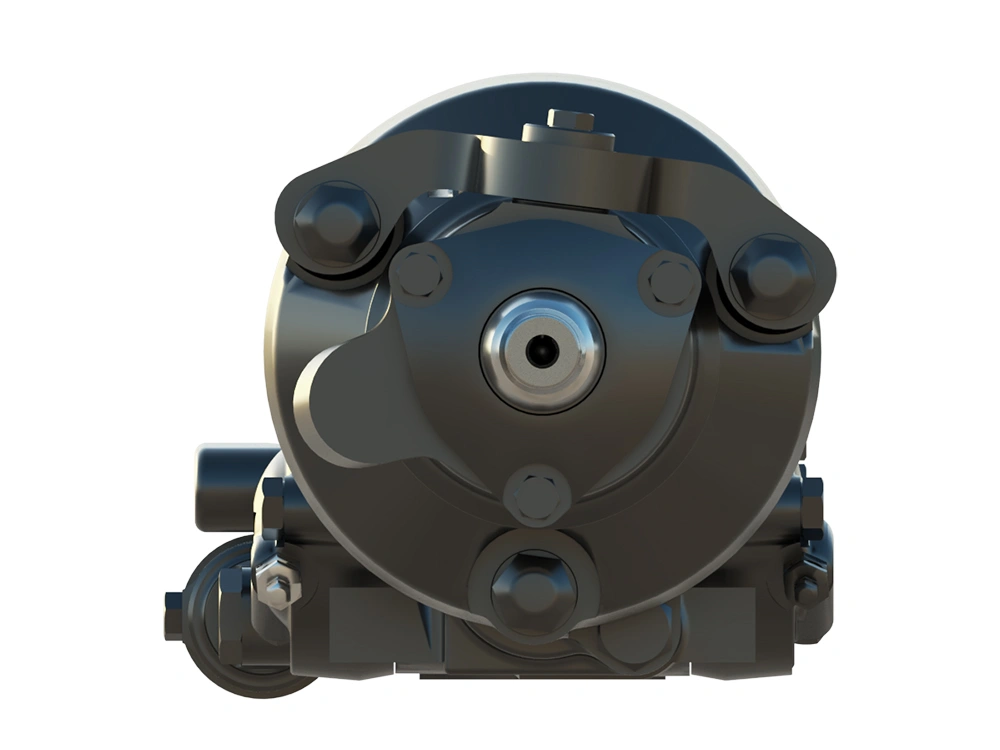

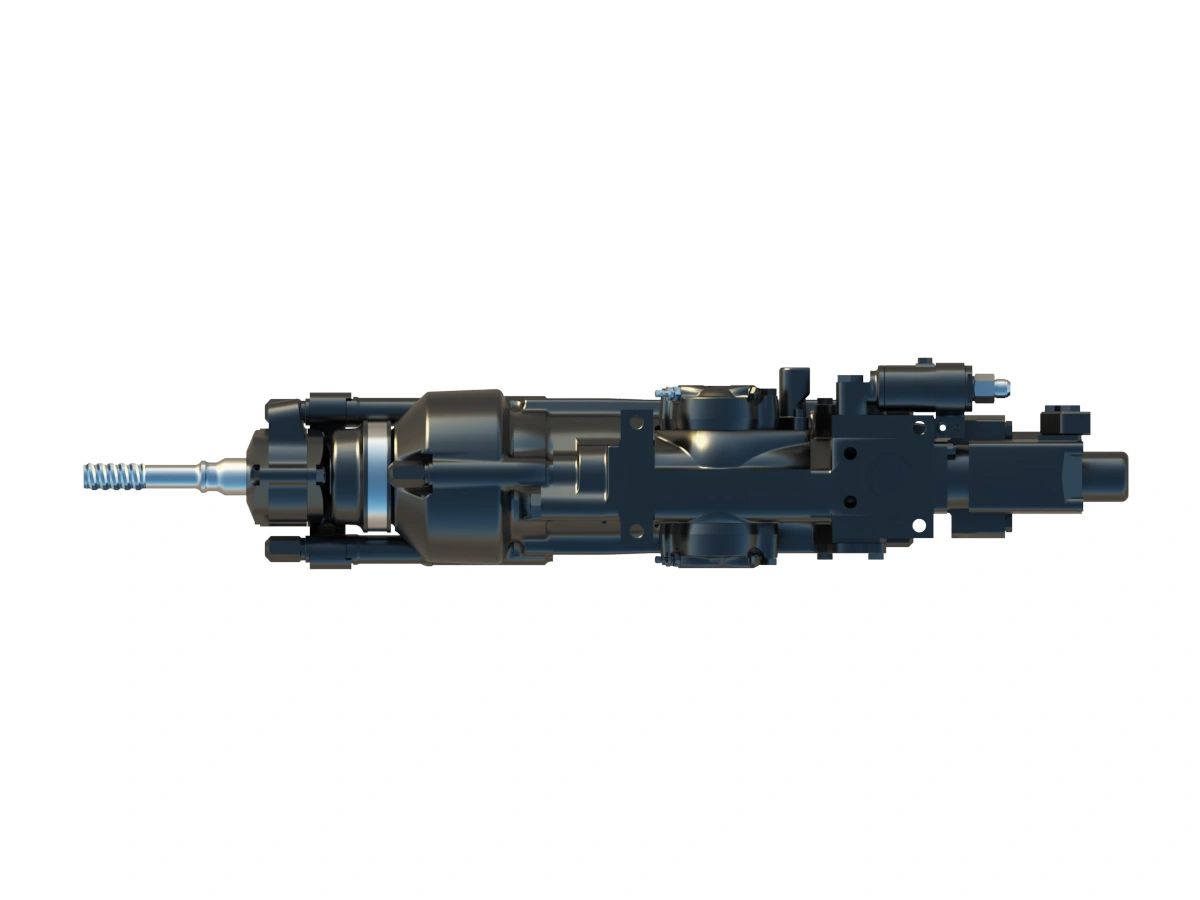

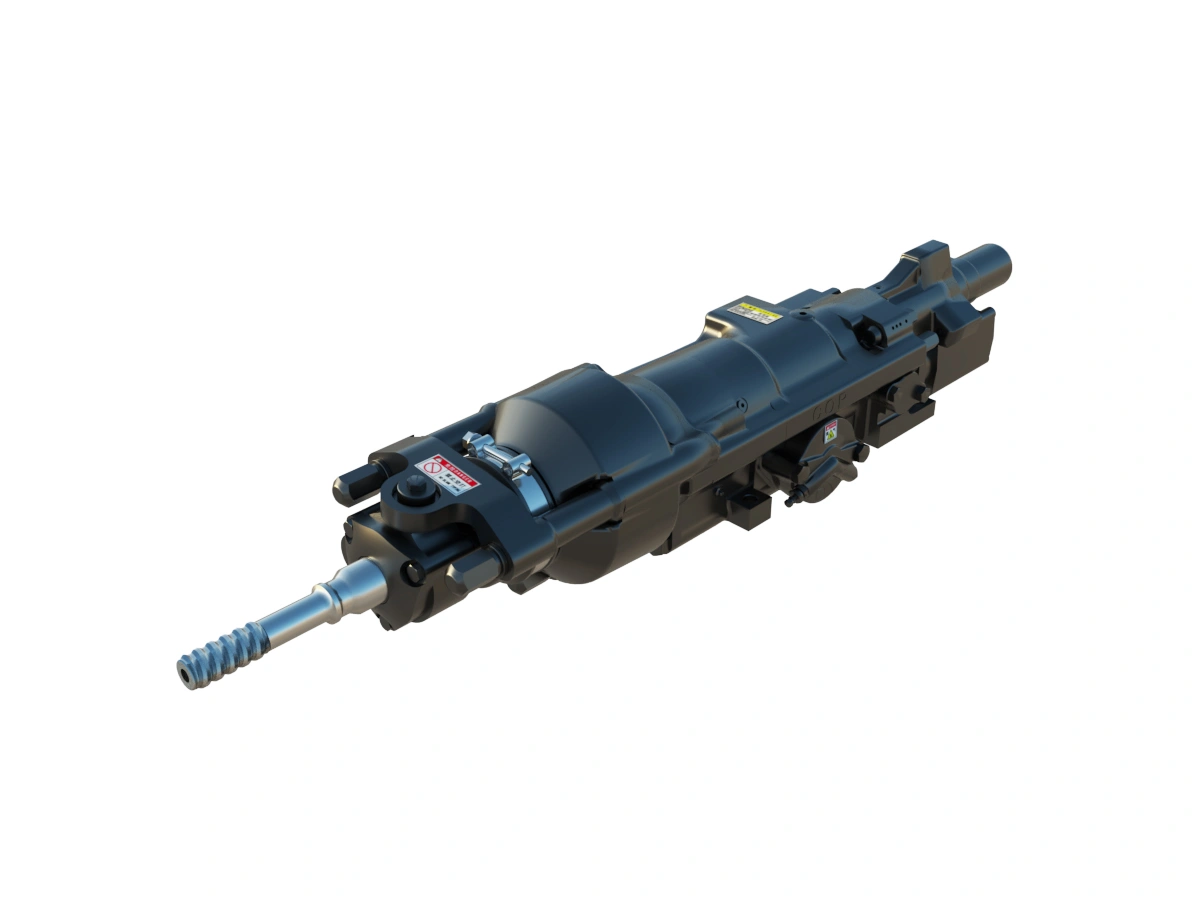

1838MUX
Hydraulic Rock Drill Drifter
Rock Breaking Attachment- Impact Output Power: 18kW
- Drilling Diameter: Ø64-89mm
The 1838MUX hydraulic rock drill is designed with an efficient hydraulic double damping system that utilizes floating adapter technology to deliver high productivity and excellent drill steel economy. The hydraulic drifter is equipped with a powerful stepless variable and reversible rotation motor, ensuring high torque and superior speed control. Furthermore, productivity is enhanced and downtime is minimized through separate lubrication for the front head and driver, as well as pressurized, lubricated surfaces and side bolts.
Request a Quote →

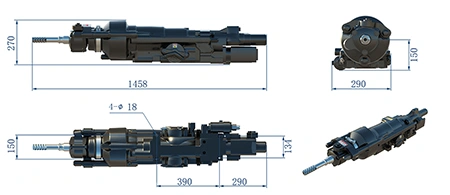

Product Parameters
| Max. Impact Output Power | 18kW |
| Impact Frequency | 60Hz |
| Max. Impact Pressure | 220bar |
| Impact Oil Flow | 75-92L/min |
| Motor Displacement | 160cc 250cc |
| Max. Rotation Torque | 1070Nm 1550Nm |
| Rotation Speed | 0-215rpm 0-135rpm |
| Max. Rotation Pressure | 210bar 200bar |
| Rotation Oil Flow | 75L/min 75L/min |
| Drilling Diameter Range | 64-89mm |
| Compatible Shank Adapters | T38/T45 |
| Operating Weight | 225kg |
Accessories

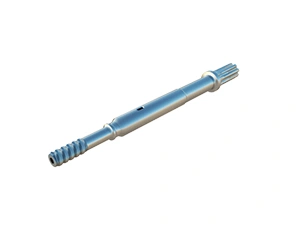

Shank

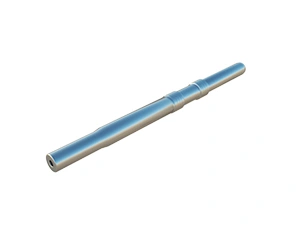

Piston

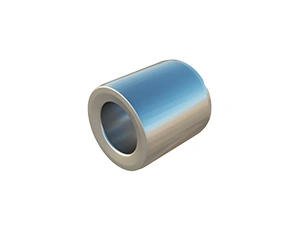

Shank bushing

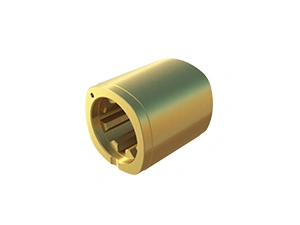

Spline wear sleeve

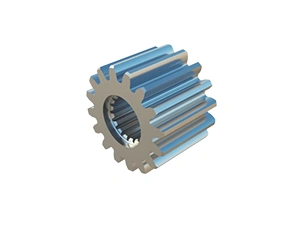

Gear

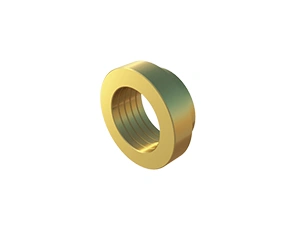

Front guide sleeve
