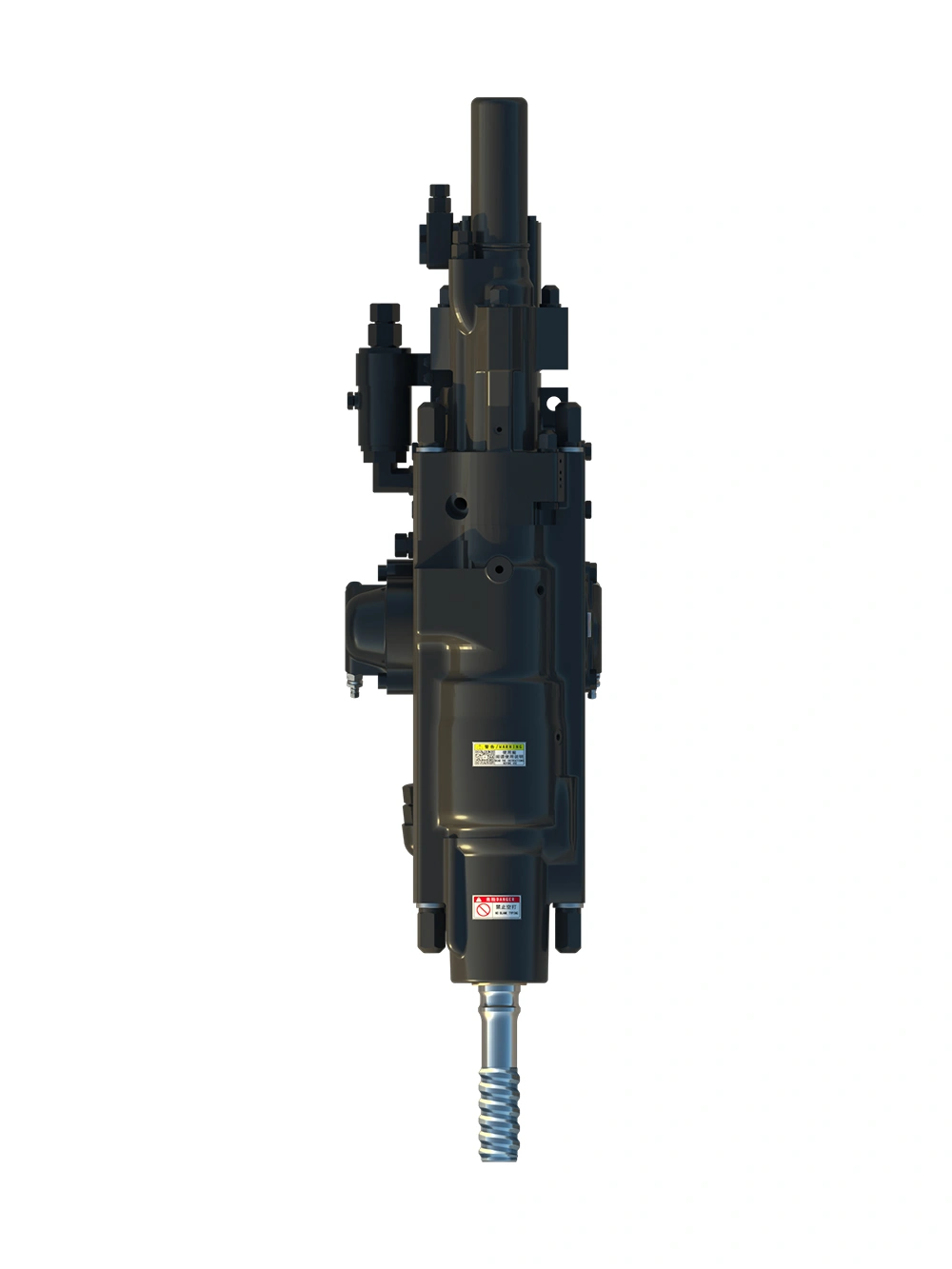

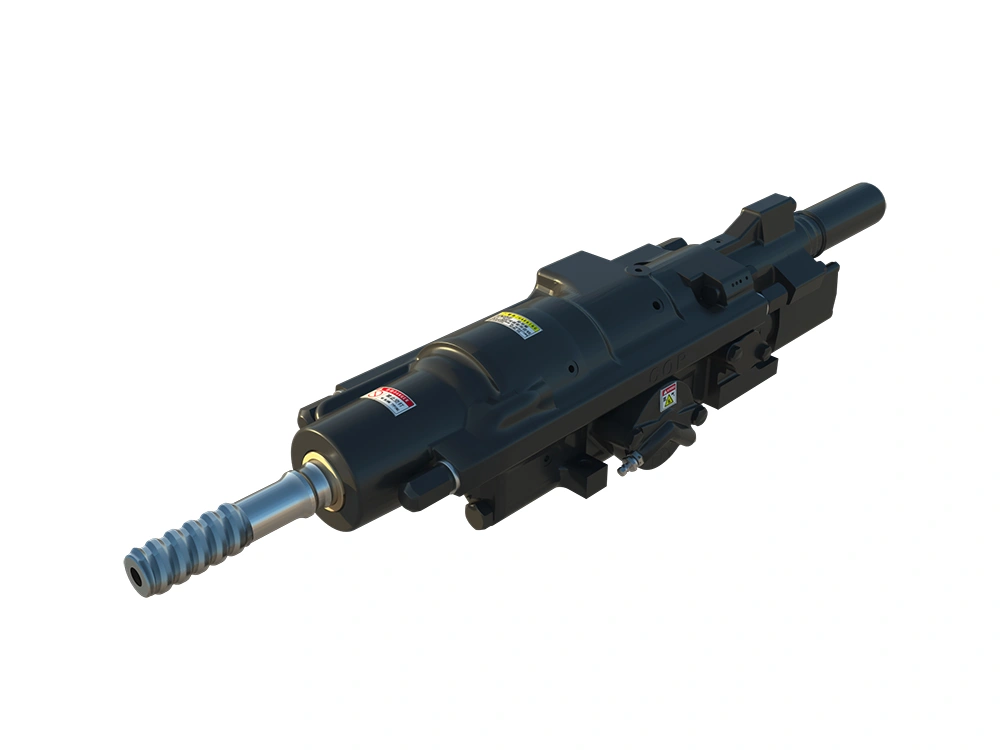

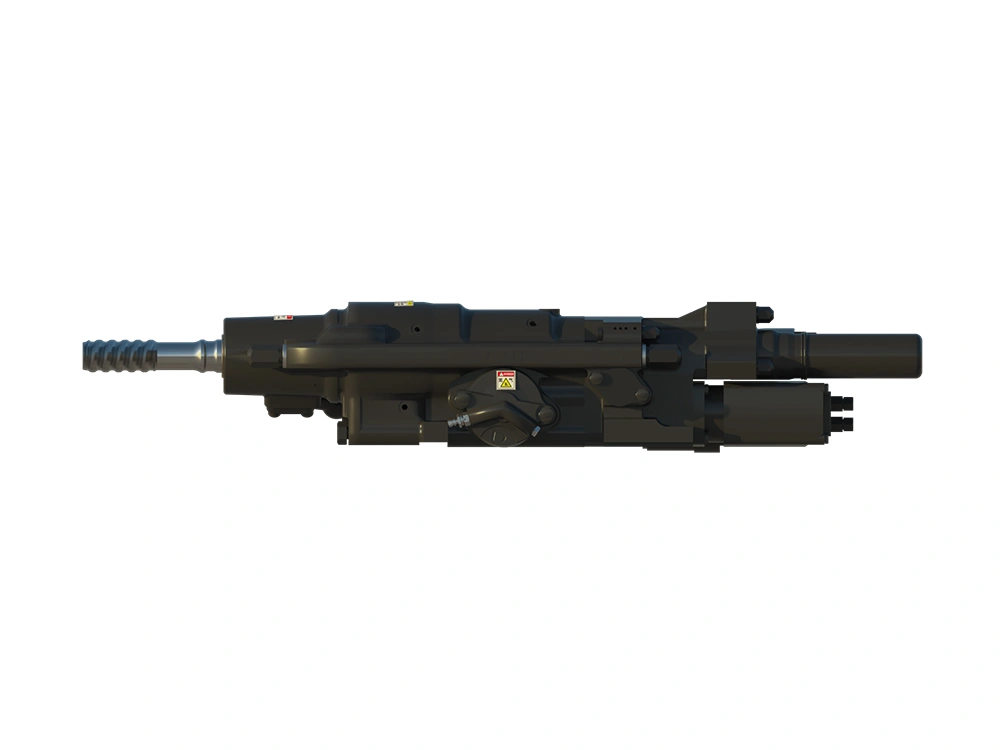

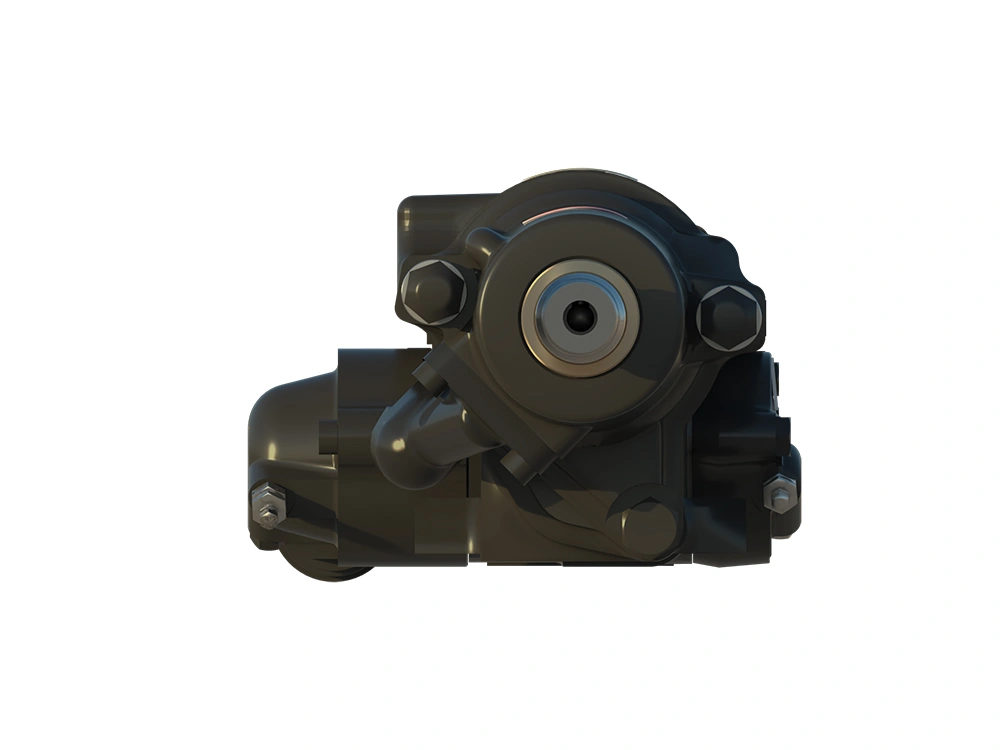

1838HE
Hydraulic Drifter
Hydraulic Rock Drilling Unit- Impact Output Power: 19kW
- Drilling Diameter: Ø45-102mm
The 1838HE hydraulic drifter features an efficient hydraulic dual buffering system and a floating shank adapter, which significantly improves the rock drill’s production capacity and tool economy. Its powerful stepless variable speed bidirectional rotation motor provides high torque output and excellent speed control. The independent lubrication of the front head and drive unit, paired with pressurized lubrication for the end and side bolts increases productivity and reduces maintenance downtime.
Request a Quote →
Product Parameters
| Max. Impact Output Power | 19kW |
| Impact Frequency | 42-50Hz |
| Max. Impact Pressure | 230bar |
| Impact Oil Flow | 71-90L/min |
| Max. Rotation Torque | 1550Nm |
| Rotation Speed | 0-215rpm |
| Max. Rotation Pressure | 200bar |
| Rotation Oil Flow | 75L/min |
| Drilling Diameter Range | 45-102mm |
| Compatible Shank Adapters | T38/T45/T51 |
| Operating Weight | 174kg |
Accessories

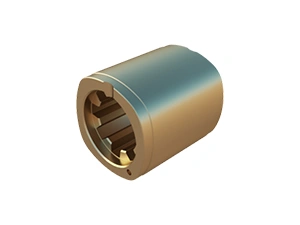

Spline wear sleeve

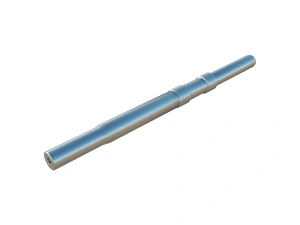

Piston

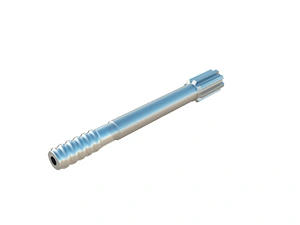

Shank

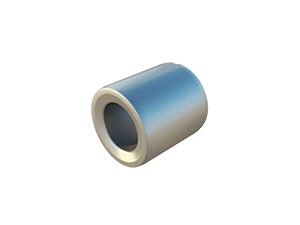

Shank bushing

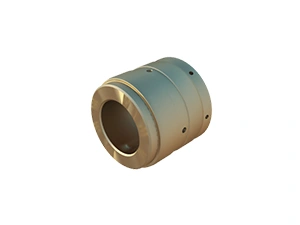

Cylinder copper sleeve

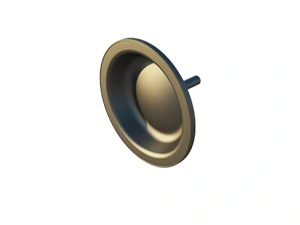

Accumulator diaphragm
