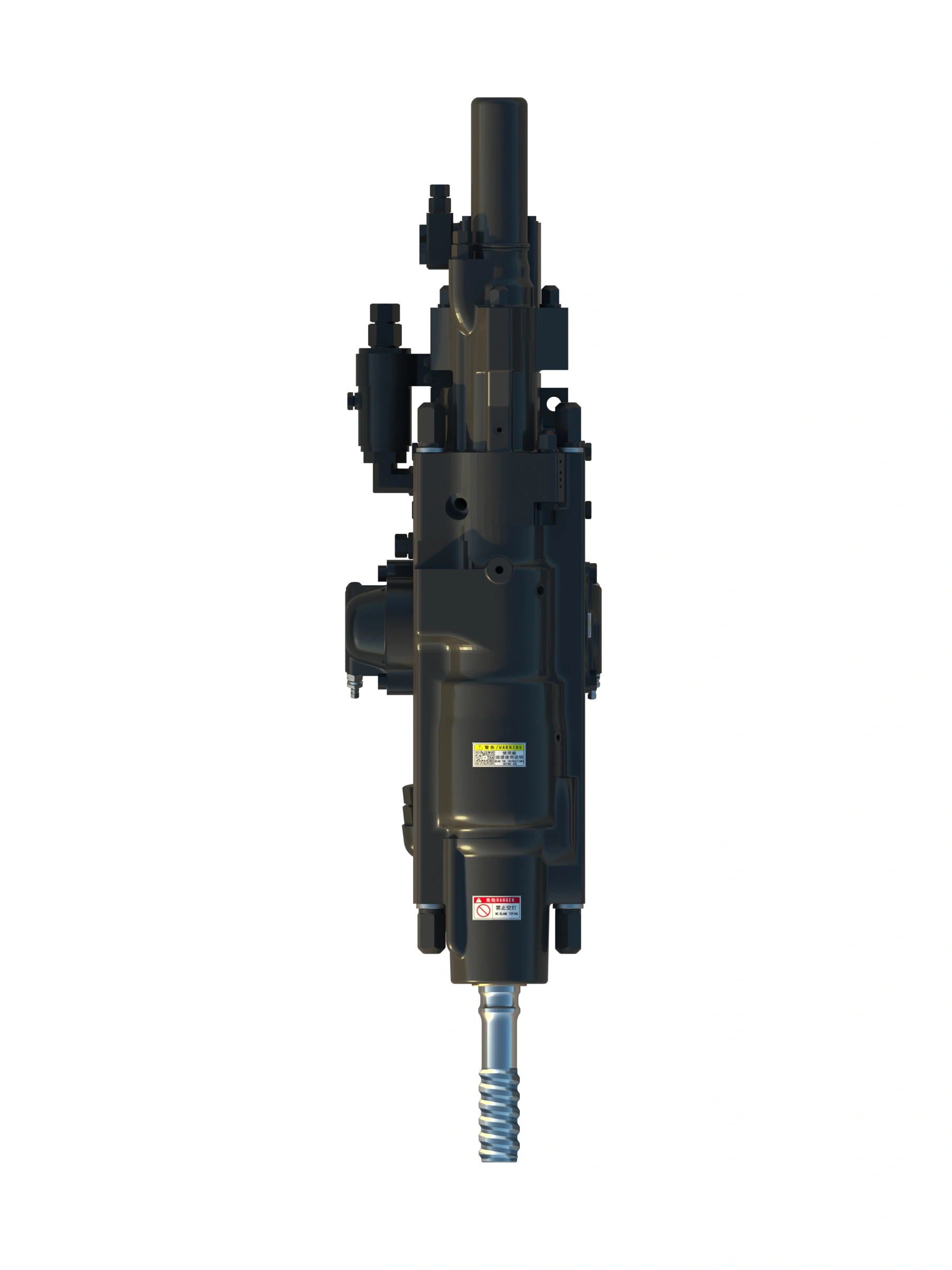

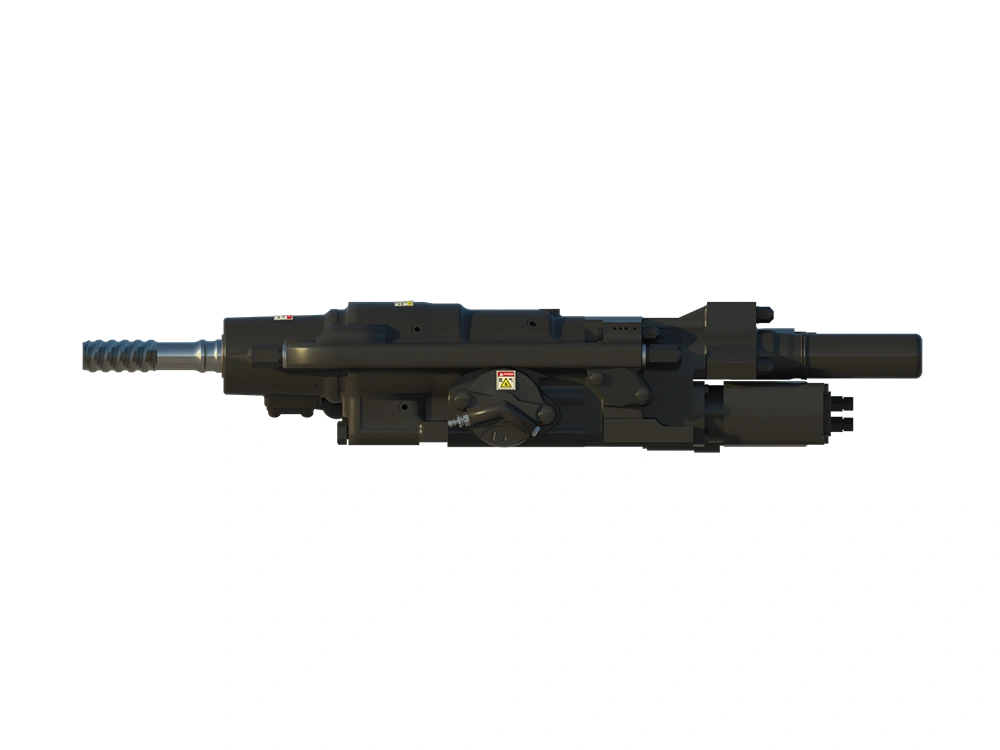

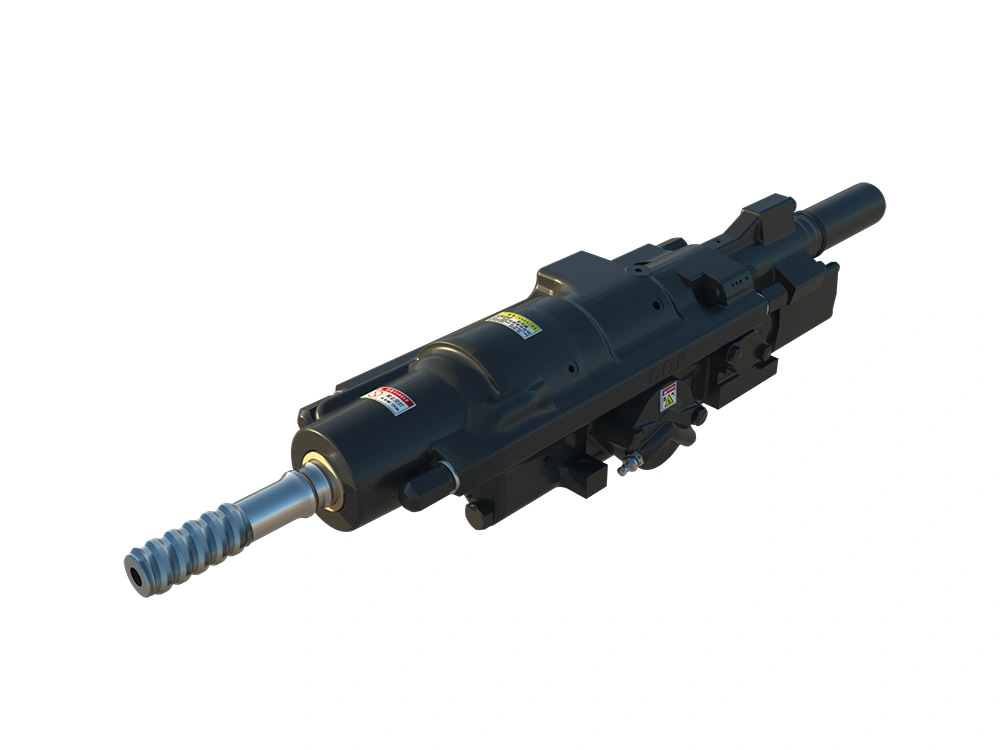

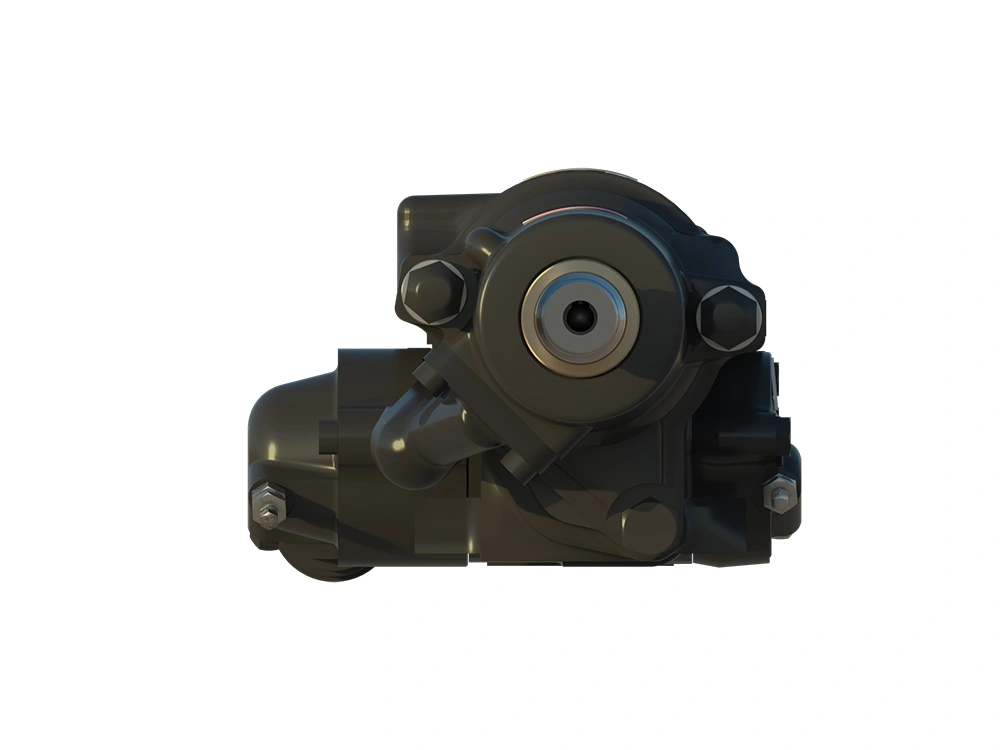

COP1238K
Hydraulic Drifter
Hydraulic Drilling Equipment Attachment- Impact Output Power: 12kW
- Drilling Diameter: Ø43-76mm
The COP1238K hydraulic drifter is a high-performance equipment widely used for tunneling and mining operations. It features a hydraulic damping piston and high-pressure accumulators. By utilizing wear-resistant materials instead of standard vulnerable components, the device significantly improves technical performance and service life. Its primary technical characteristics include a slender piston, an effective damping mechanism, and a high-pressure driven impact mechanism suitable for various applications.
Request a Quote →
Product Parameters
| Max. Impact Output Power | 12kW |
| Impact Frequency | 46-60Hz |
| Max. Impact Pressure | 220bar |
| Impact Oil Flow | 61-79L/min |
| Max. Rotation Torque | 1550Nm |
| Rotation Speed | 0-340rpm |
| Max. Rotation Pressure | 210 bar |
| Rotation Oil Flow | 75L/min |
| Drilling Diameter Range | 43-76mm |
| Compatible Shank Adapters | R38/T38/T45 |
| Operating Weight | 172kg |
Accessories

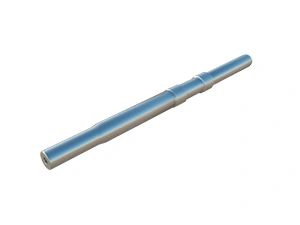

Piston

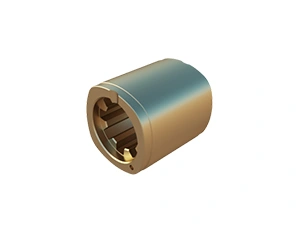

Spline wear sleeve

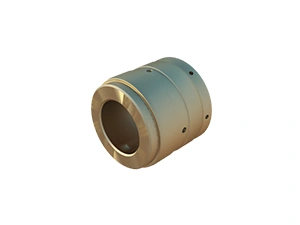

Cylinder copper sleeve

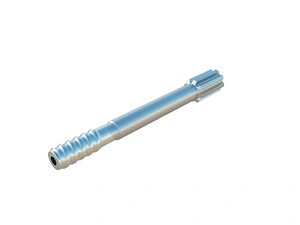

Shank

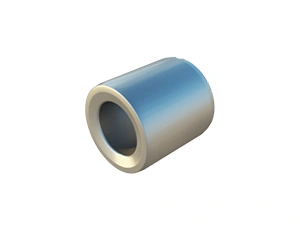

Shank bushing

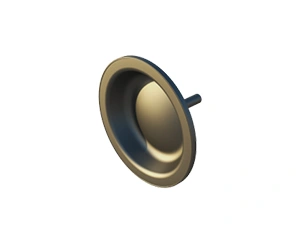

Accumulator diaphragm
