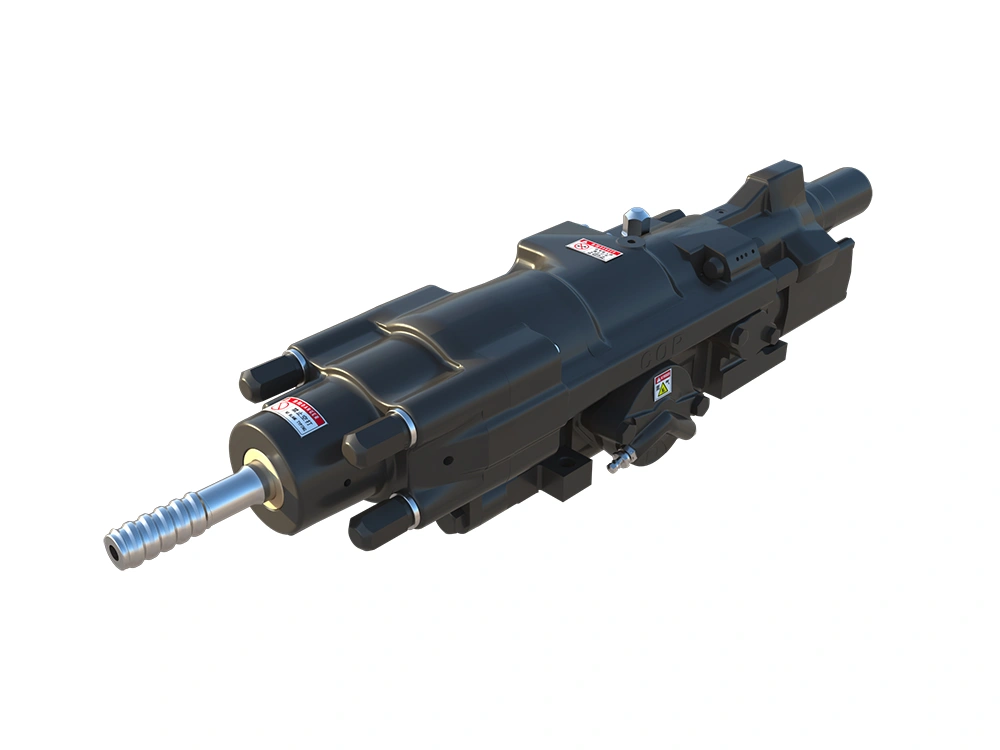

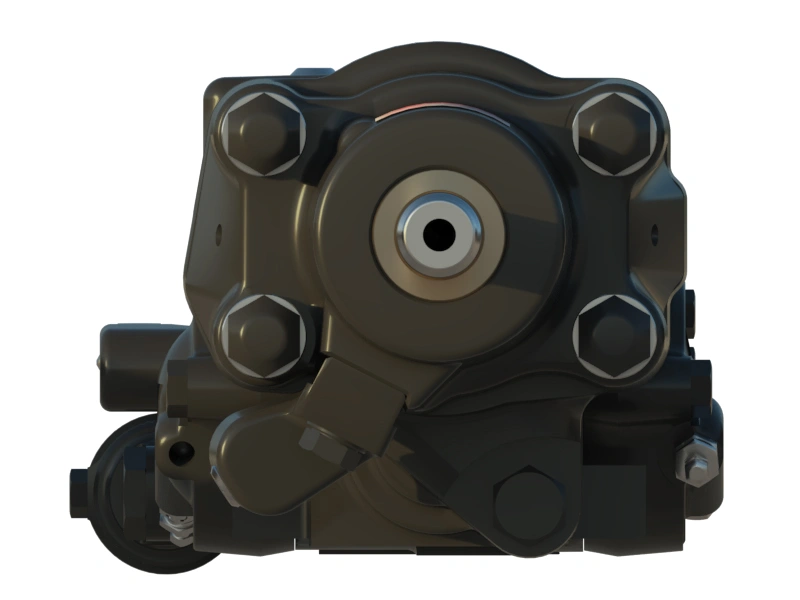

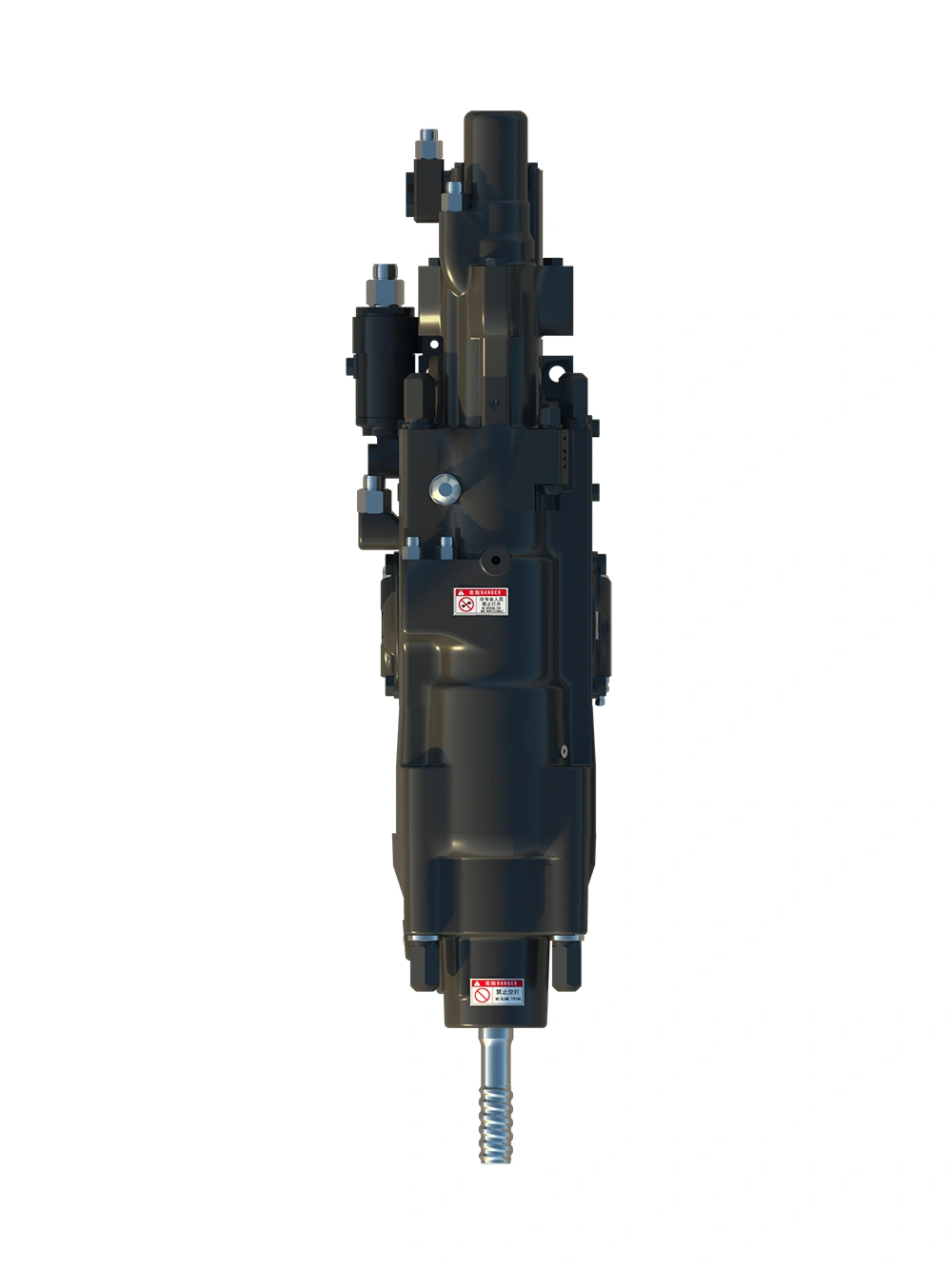

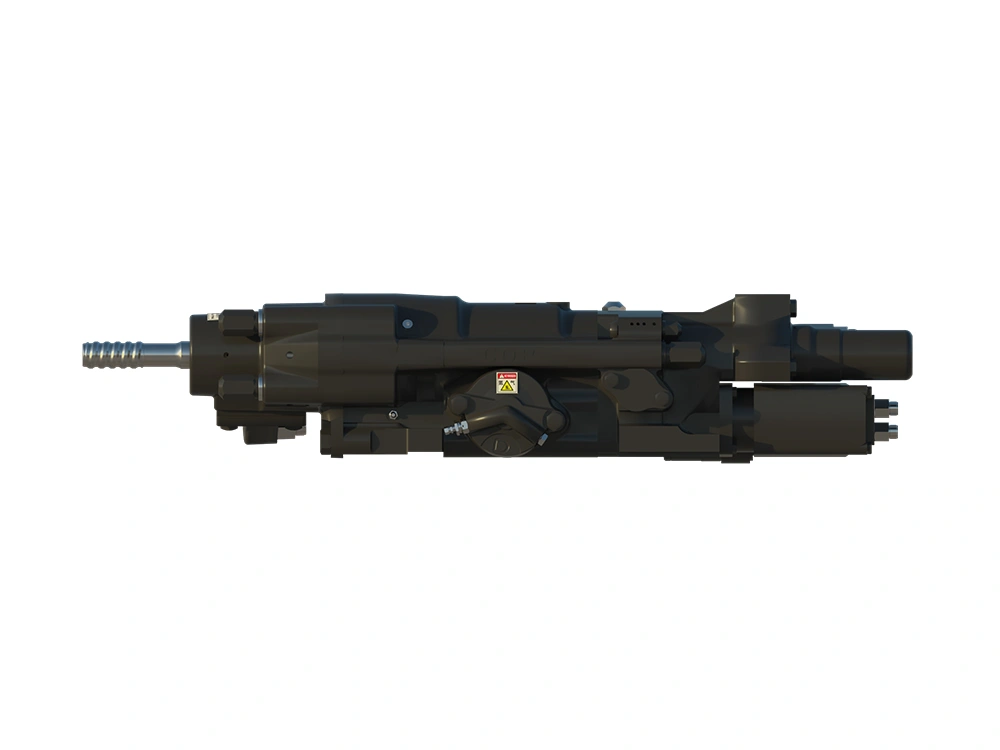

1838HD
Hydraulic Drifter
Hydraulic Rock Drilling Components- Impact Output Power: 18kW
- Drilling Diameter: Ø38-64mm
The 1838HD hydraulic rock drill drifter delivers a high torque output designed to facilitate efficient drilling and significantly minimize the risk of drill string jamming.
- The design ensures optimized rock-to-bit contact, which stabilizes the drilling process. It also includes internal mechanisms to protect the drifter's body and internal components from harmful energy recoil.
- By ensuring the effective removal of rock cuttings, the 1838HD drifter prevents the regrinding of debris. This efficiency directly extends the service life of the drill bit, reducing consumable costs and environmental impact.
Request a Quote →
Product Parameters
| Max. Impact Output Power | 18kW |
| Impact Frequency | 60Hz |
| Max. Impact Pressure | 230bar |
| Impact Oil Flow | 75-92L/min |
| Max. Rotation Torque | 1000Nm |
| Rotation Speed | 0-340rpm |
| Max. Rotation Pressure | 210bar |
| Rotation Oil Flow | 75L/min |
| Drilling Diameter Range | 38-64mm |
| Compatible Shank Adapters | R32/R38/T38 |
| Operating Weight | 175kg |
Accessories

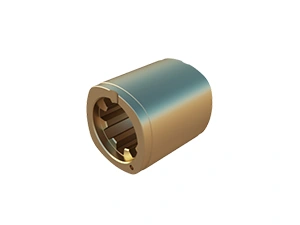

Spline wear sleeve

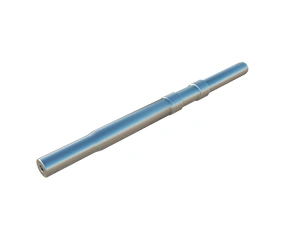

Piston

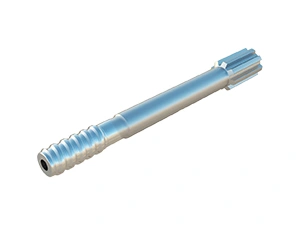

Shank

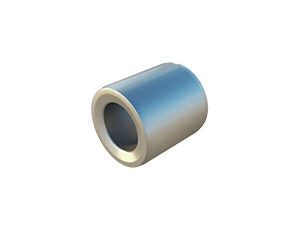

Shank bushing

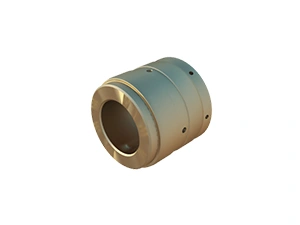

Cylinder copper sleeve

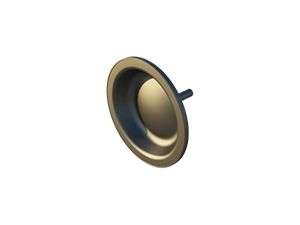

Accumulator diaphragm
