Side Type Hydraulic Breaker Hammer | Rock Breaking Tool

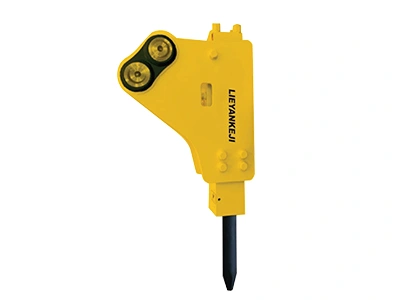

Side Type Breaker Hammer

Excavator Attachment for Mining, Foundations, and Infrastructure

The side type hydraulic breaker hammer is characterized by its compact structure, powerful impact force, and exceptional durability. Featuring sensitive operation response and precise positioning, this breaker is engineered for various rock crushing and concrete demolition applications. The overall design balances strength and service life, maintaining stable output under high-frequency impact conditions to effectively improve construction efficiency and reduce failure rates.

Request a Quote →

Bracket Options & Advantages

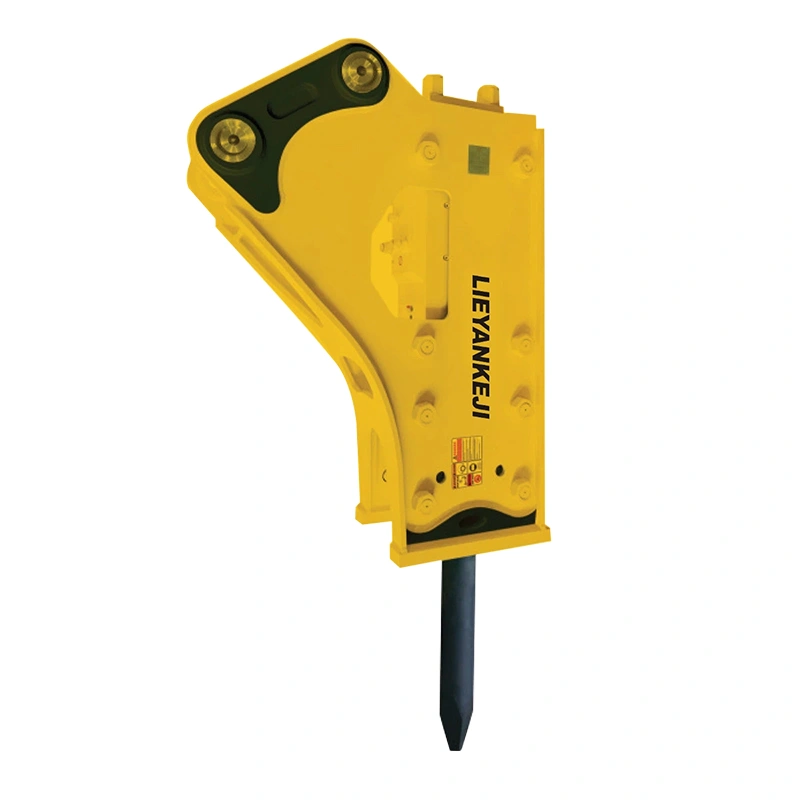

Top-Mount Delivers precise positioning and intuitive control; high carrier compatibility; lightweight design significantly reduces chisel stress and fracture risks.

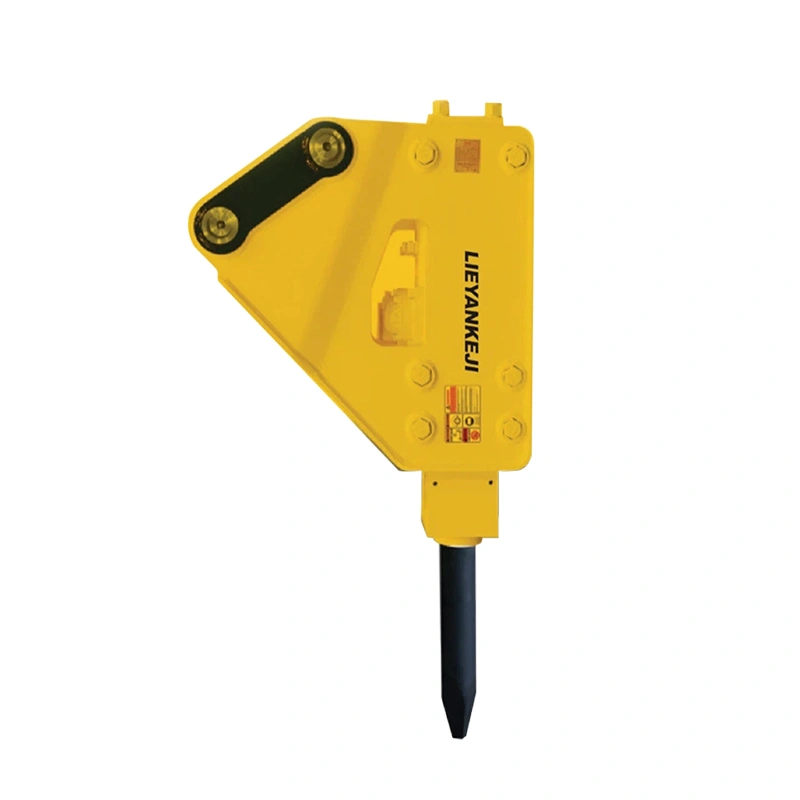

Box-Silenced Engineered for low-decibel operation to meet strict environmental standards; effectively minimizes construction noise pollution in urban areas.

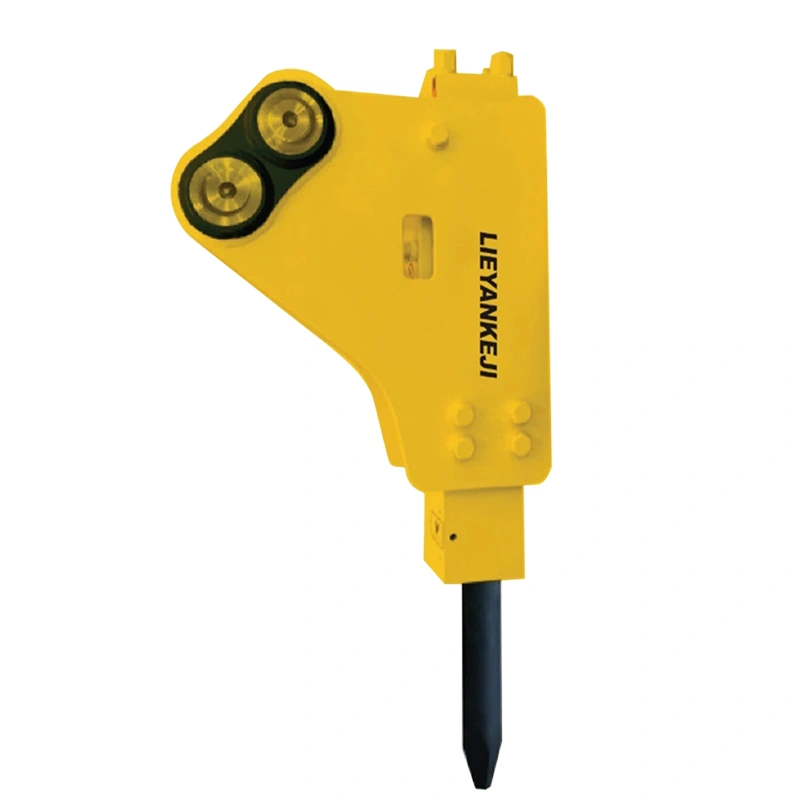

Side-Mount Features a shorter overall length for superior maneuverability; low-maintenance configuration reduces long-term operational costs.

Product Parameters

	Compact Range						Medium Range
Model	LYPS100	LYPS200	LYPS300	LYPS350	LYPS400	LYPS430	LYPS450	LYPS900	LYPS1600	LYPS2000	LYPS2200	LYPS2200A
Carrier Weight (t)	0.8-2.5	1.2-3.0	2.5-4.5	3.0-5.5	4-7	6-9	7-14	10-15	15-18	18-26	18-26	18-26
Operating Weight (kg)	77	90	132	198	275	418	561	842	1381	1609	1950	1950
Oil Flow (L/min)	15-30	20-40	25-50	30-60	40-70	50-90	60-100	80-110	90-120	100-150	120-180	120-180
Operating Pressure (bar)	150	150	150	150	170	180	190	200	210	210-230	210-230	210-230
Relief Pressure (bar)	90-120	90-120	90-120	100-130	110-140	120-150	130-160	150-170	150-170	160-180	160-180	160-180
Impact Energy (J)	203	271	406	542	677	1017	1355	2033	2711	3423	4067	4067
Impact Rate (bpm)	800-1400	700-1200	600-1100	500-1000	500-900	400-800	400-800	350-700	350-650	350-600	350-500	350-500
Hose Size (inch)	1/2	1/2	1/2	1/2	1/2	1/2	3/4	3/4	1	1	1	1
Noise Level (dB)	106	107	109	117	109	115	112	114	115	120	118	118
Chisel Dia. (mm)	40	45	53	60	68	75	85	100	125	135	140	140

Large Range

Model	LYPS3000	LYPS3200	LYPS3500	LYPS3500F	LYPS4500	LYPS3000G	LYPS4000G	LYPS185	LYPS195	LYPS195P	LYPS200	LYPS205	LYPS210	LYPS220
Carrier Weight (t)	25-30	28-35	30-40	30-40	35-40	25-33	35-45	35-45	40-55	50-55	50-70	50-70	60-80	70-80
Operating Weight (kg)	2350	2655	2735	3289	4167	2462	3001	4376	5039	5374	6205	6375	6683	7378
Oil Flow (L/min)	150-210	180-240	200-260	200-260	210-290	175-220	200-250	220-290	240-290	260-280	260-300	260-300	300-350	320-350
Operating Pressure (bar)	240-250	240-260	240-260	240-260	260-280	210	210	290-300	300-310	300-310	300-310	300-310	310-330	310-330
Relief Pressure (bar)	160-180	180-200	180-200	180-200	180-200	160-180	160-180	220-280	220-280	260-280	220-280	260-280	280-320	280-320
Impact Energy (J)	5423	6779	8812	10846	12202	5193	10388	14302	17088	19322	21360	23543	25632	27057
Impact Rate (bpm)	300-450	300-450	250-400	250-350	250-350	300-450	300-400	200-250	180-200	160-200	150-200	150-200	150-200	120-180
Hose Size (inch)	1	1-1/4	1-1/4	1-1/4	1-1/4	1	1-1/4	1-1/4	1-1/4	1-1/4	1-1/4	1-1/4	1-1/4	1-1/4
Noise Level (dB)	120	123	123	124	125	120	123	125	125	125	125	125	125	125
Chisel Dia. (mm)	150	155	165	165	175	150	160	185	195	195	200	205	210	220

Product Brochure

Download our catalog for details

Download

Complete Range of Spare Parts Available

Back Head
Front Head
Breaker Cylinder
Through Bolt
Seal Kit
Diaphragm
Rod Pin
Lock Pin
Upper Bushing
Accumulator
Control Valve
Piston Ring
Chisel (Universal)
Thrust Bushing
Moil Chisel
Piston
V-Wedge Chisel
Universal Chisel
Flat Chisel
H-Wedge Chisel
Lower Bushing
Rubber Pad
Side Bolt
Charging Valve
Gas Charging Kit
Gas Bottle

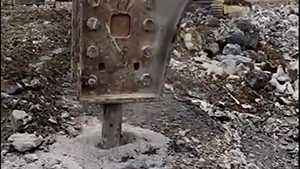

On-Site Operation Video
