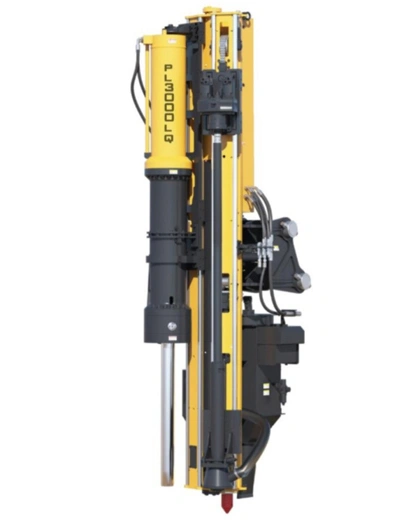

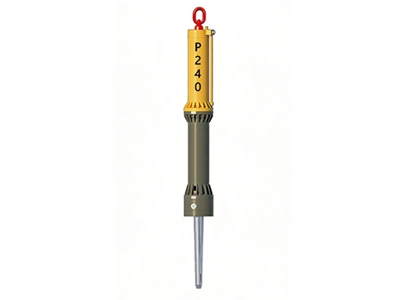

Excavator drilling splitter is a specialized engineering unit that integrates a Down-The-Hole (DTH) percussion drill with a hydraulic splitting system. The operational process involves drilling precision holes followed by the insertion of hydraulic splitting cylinders. By utilizing massive hydraulic expansion force, the drilling splitter efficiently fractures rock or concrete from the inside out.

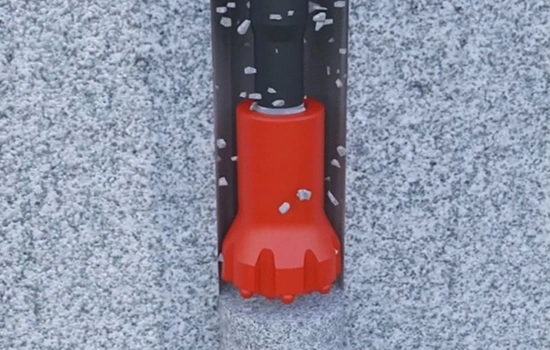

Drilling

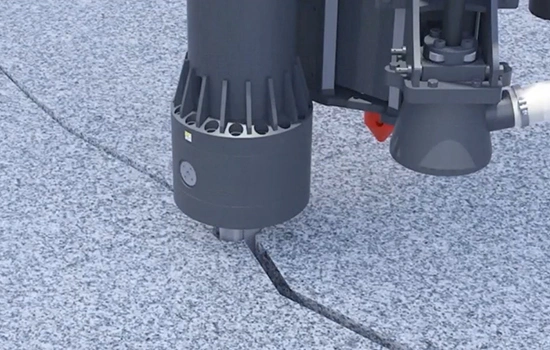

Splitting

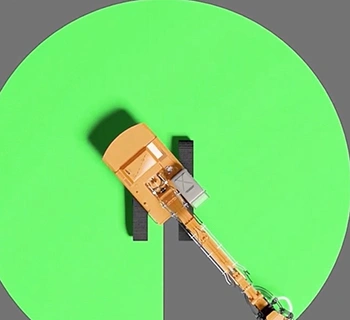

Enables continuous 360° rotation for comprehensive horizontal operation

Engineered for high-efficiency vertical drilling/splitting

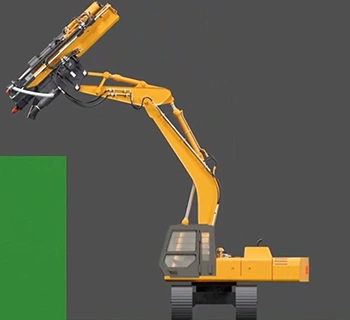

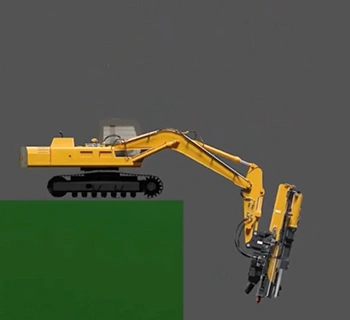

Engineered for operations below horizontal grade

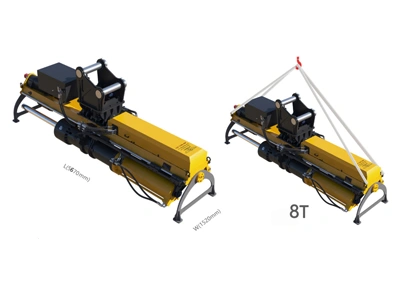

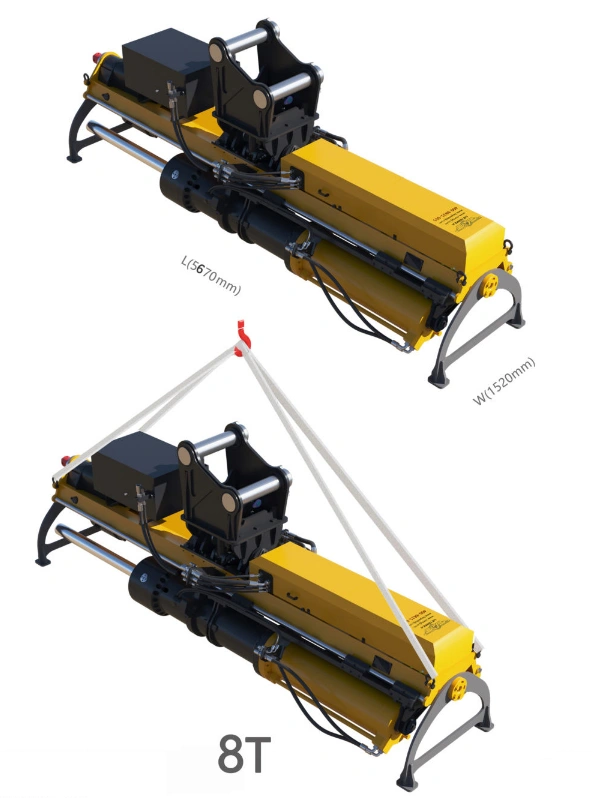

Overall specifications

Total Weight	8.8T
Overall Length	5950mm
Overall Width	1700mm

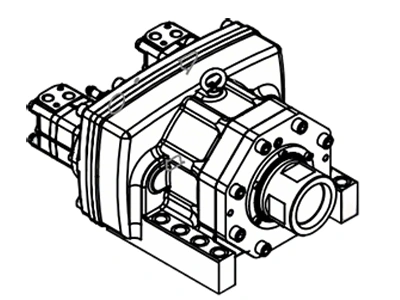

Hydraulic Power Head

Input Pressure	200bar
Input Flow Rate	190L/min
Rotational Torque	3483Nm
Drilling Speed	70rpm
Operating Noise	Compliant with GB19872-2005
Drill Hole Diameter	Ø203mm
Drilling Depth	2400mm

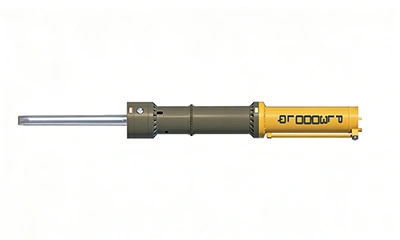

Splitting Machine Parameters

Splitting Depth	1800mm
Max. Splitting Force	30000T
Rotation Angle	360°

Remote Control System

Effective Range	50m
Digital Output Channels Force	30
Analog Output Channels	14
Adjacent Channel Rejection	>50dB

Feed Beam

Max. Drill Thrust Force	40KN
Max. Splitter Retraction Force	80KN

Swing Unit

Swing Force	80KN
Swing Speed	1rpm

Auxiliary Air Compressor

Free Air Delivery (FAD)	26-31m³/min
Discharge Pressure	22-25bar

Vacuum Dust Collector

Number of Filter Elements

20P

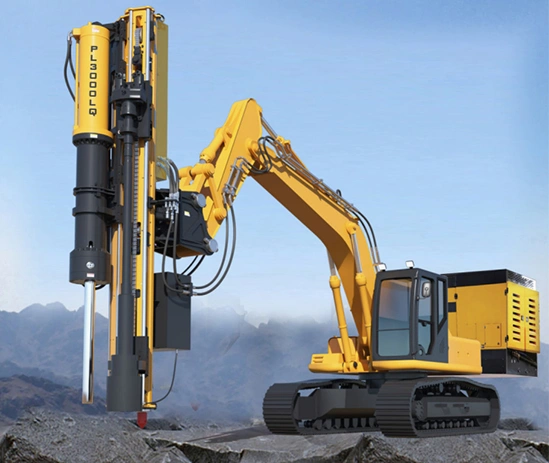

Designed for excavator mounting, the excavator drilling splitter leverages the excavator’s mobility and existing auxiliary hydraulic circuits. By connecting a dedicated hydraulic conversion device, removing the bucket, and installing a diesel-driven air compressor at the rear counterweight position, the excavator is converted into a pneumatic rock drilling and splitting unit, enabling multi-functional operation with a single machine.

• Efficiency Integrated Operation: A single splitter unit completes the entire drilling and splitting cycle without the need for equipment changes. Seamless process transitions significantly enhance overall construction productivity.
• Superior Safety Standards: As a non-explosive operation, it eliminates the risks of explosives and flying debris. The process is fully controllable and ideal for projects in blasting-restricted or sensitive zones.
• Environmental Profile: Engineered for low noise and minimal vibration with zero harmful gas emissions. It fully complies with stringent environmental regulations and urban construction noise ordinances.
• Cost-Efficiency: Eliminates the need for costly blasting permits or expensive chemical cracking agents. The system reduces labor requirements and maintains low operational and maintenance costs.
• Diverse Versatility: Highly adaptable to a diverse range of applications, including open-pit quarrying, foundation demolition, steel slag removal, and reinforced concrete deconstruction. It provides flexible performance even in the most complex geological conditions.
