Hydraulic Rock Drill Splitter
Excavator Attachment

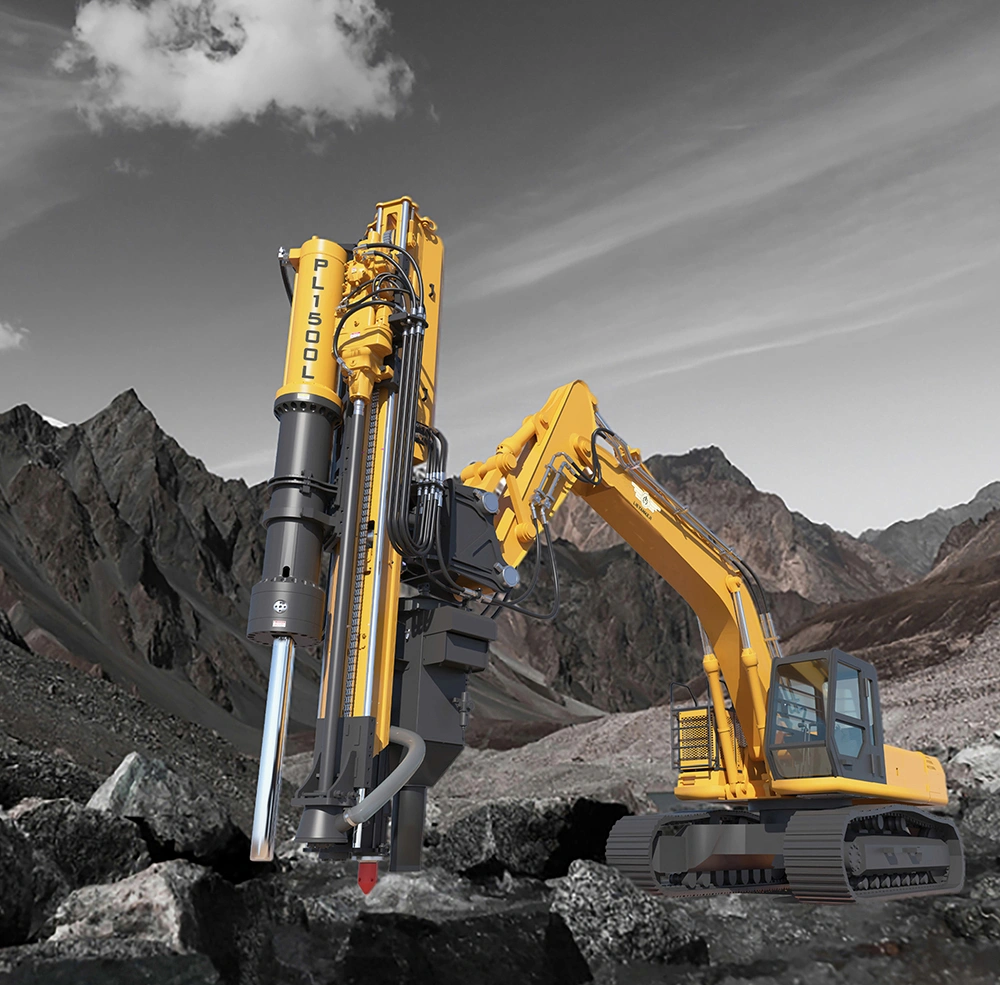

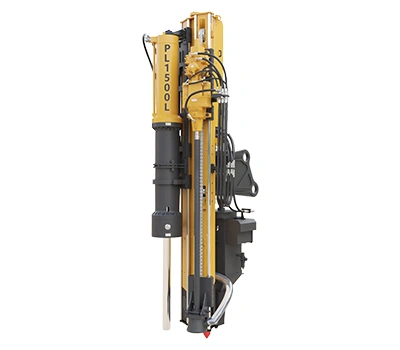

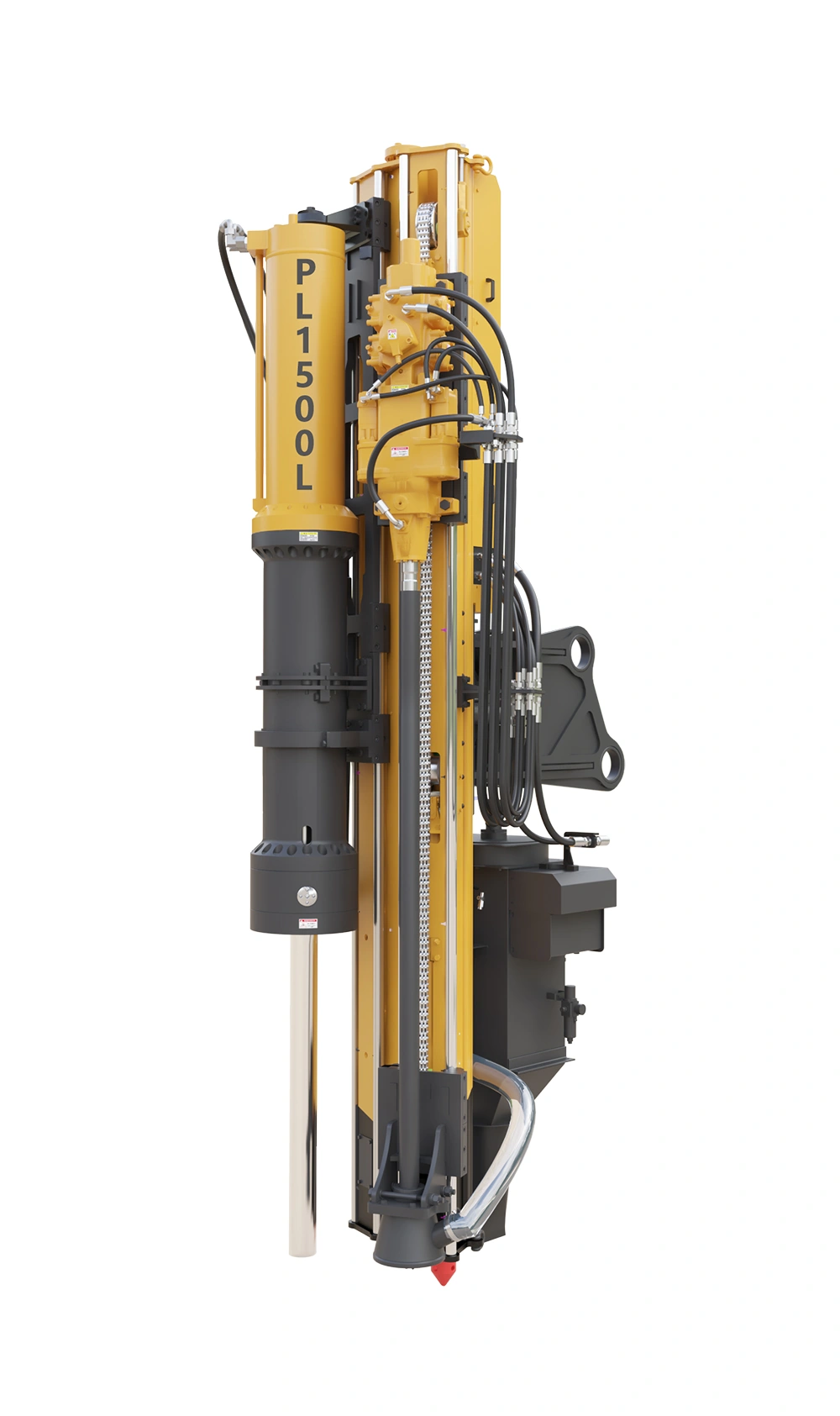

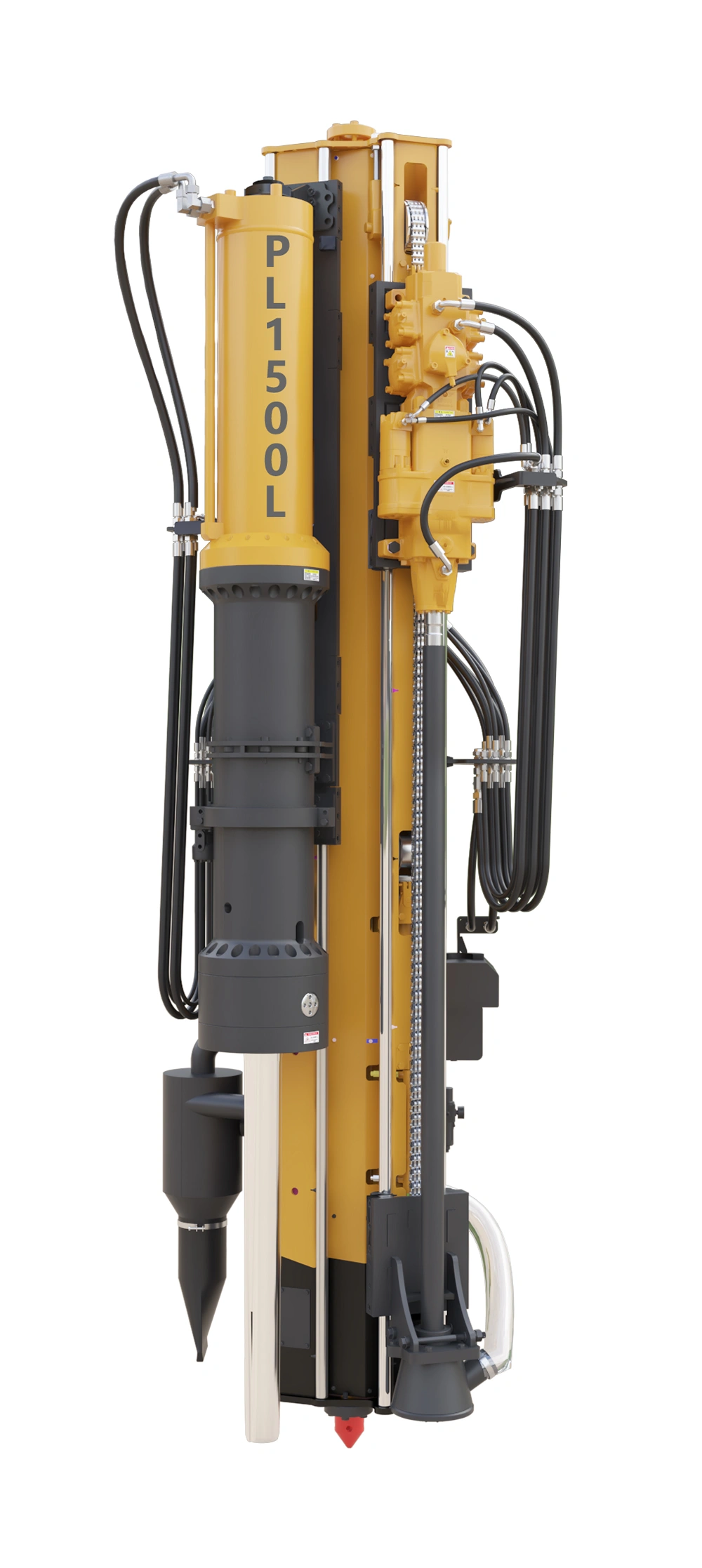

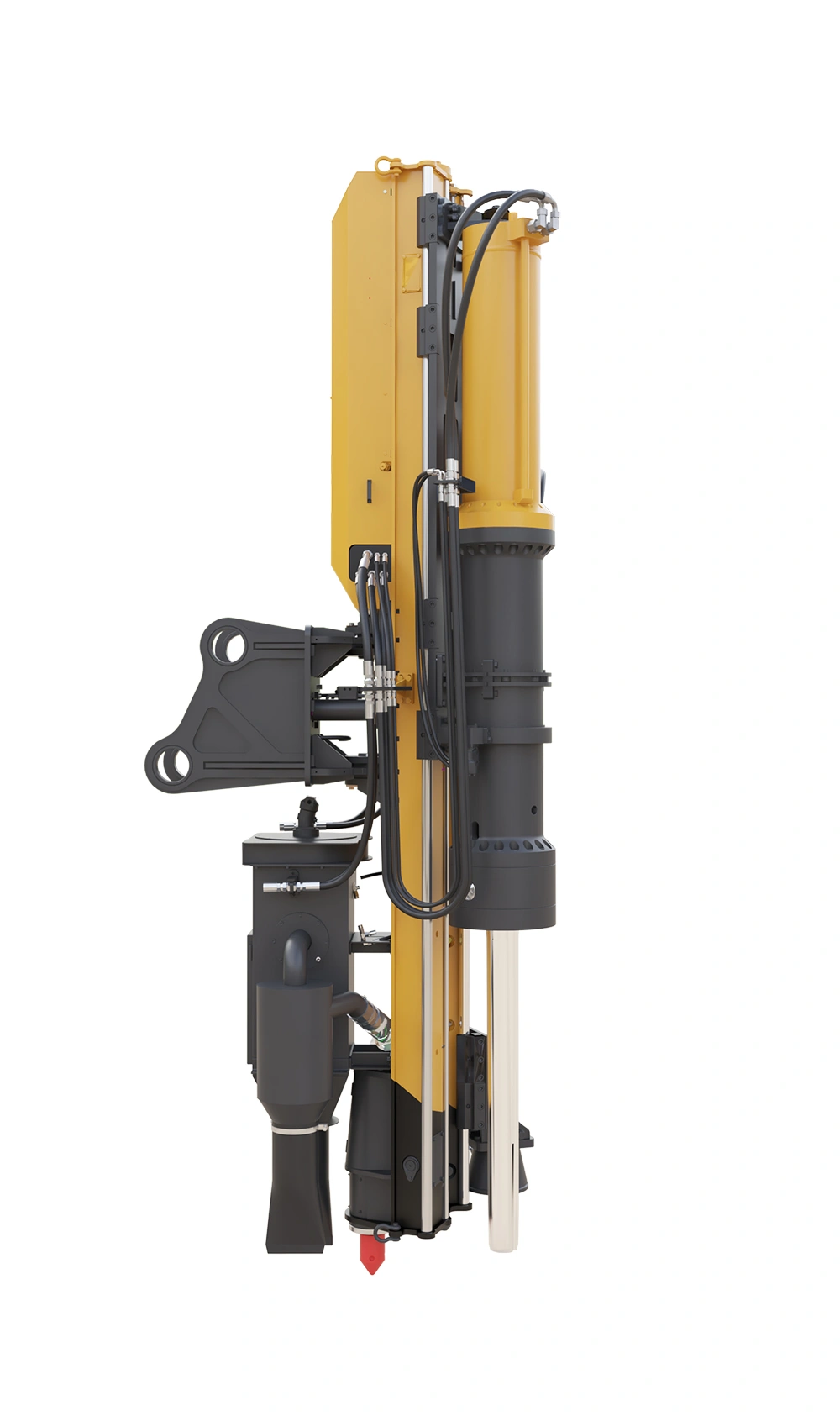

Mounted on 36 to 48-ton class excavators, the PL-1500L hydraulic rock drill splitter offers a high-efficiency, eco-friendly solution for hard rock excavation and mining. By fully leveraging the excavator’s power and mobility, the rock drill splitter excels in the most demanding outdoor environments.

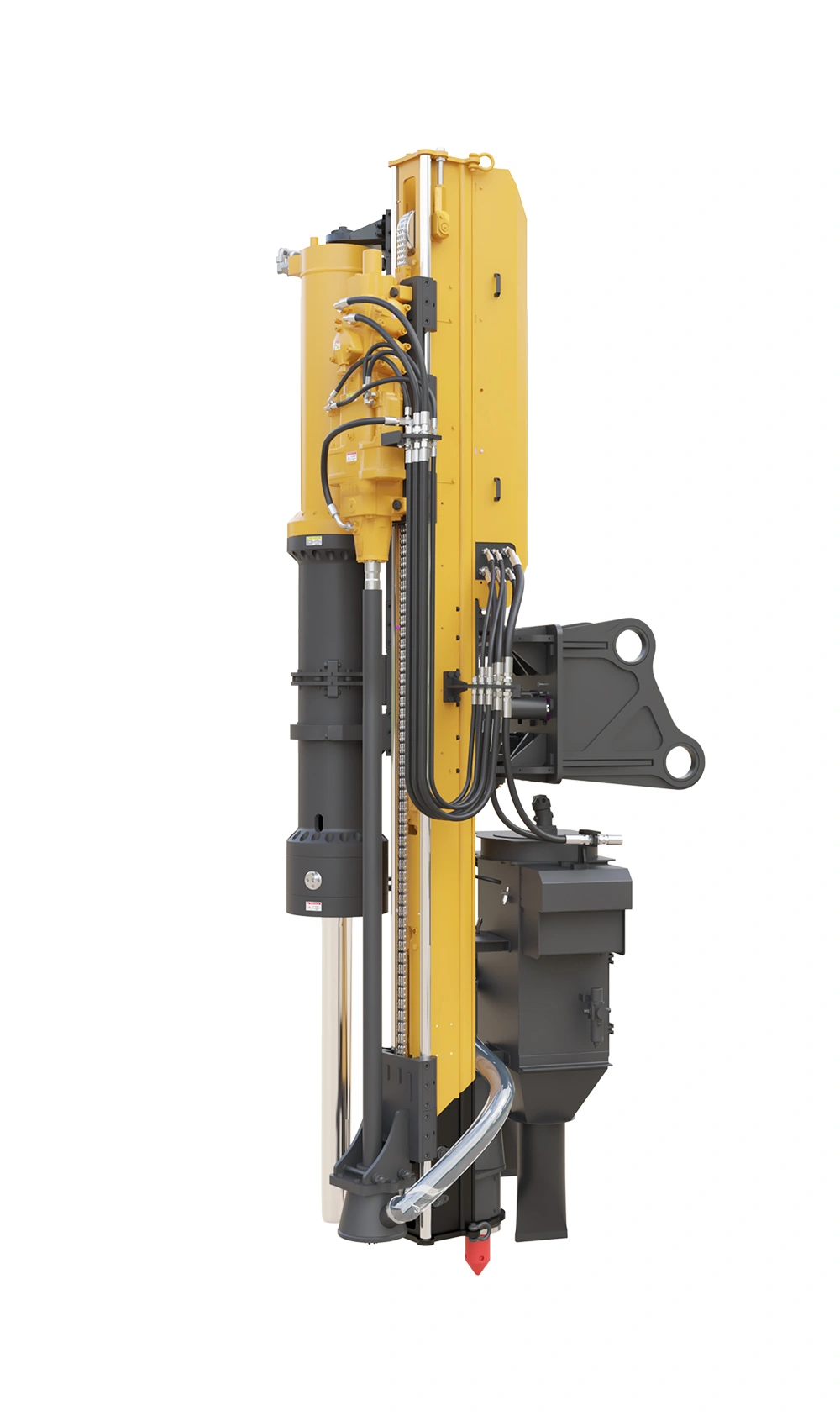

The proprietary L-shaped triangular swing linkage ensures exceptional structural stability and durability, facilitating precision operation across all angles. Designed for versatility, the splitter is easy to disassemble for transport and features a rear-mounted electrical and hydraulic configuration for streamlined inspection and maintenance. Operations are managed via a high-reliability, multi-channel wireless remote control system.

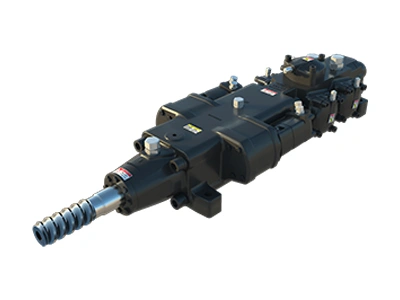

Equipped with a 30kW hydraulic rock drill, the excavator drill splitter first executes precision drilling. This is followed by the P280 two-stage pressure-boosted splitter, which performs in-hole splitting to deliver highly efficient, non-explosive rock breaking.
Drilling
Splitting
Enables continuous 360° rotation for comprehensive horizontal operation
Engineered for high-efficiency vertical drilling/splitting
Engineered for operations below horizontal grade

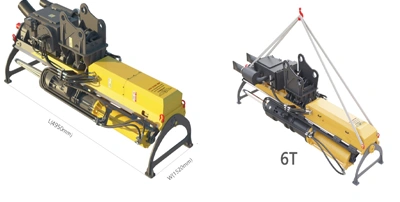

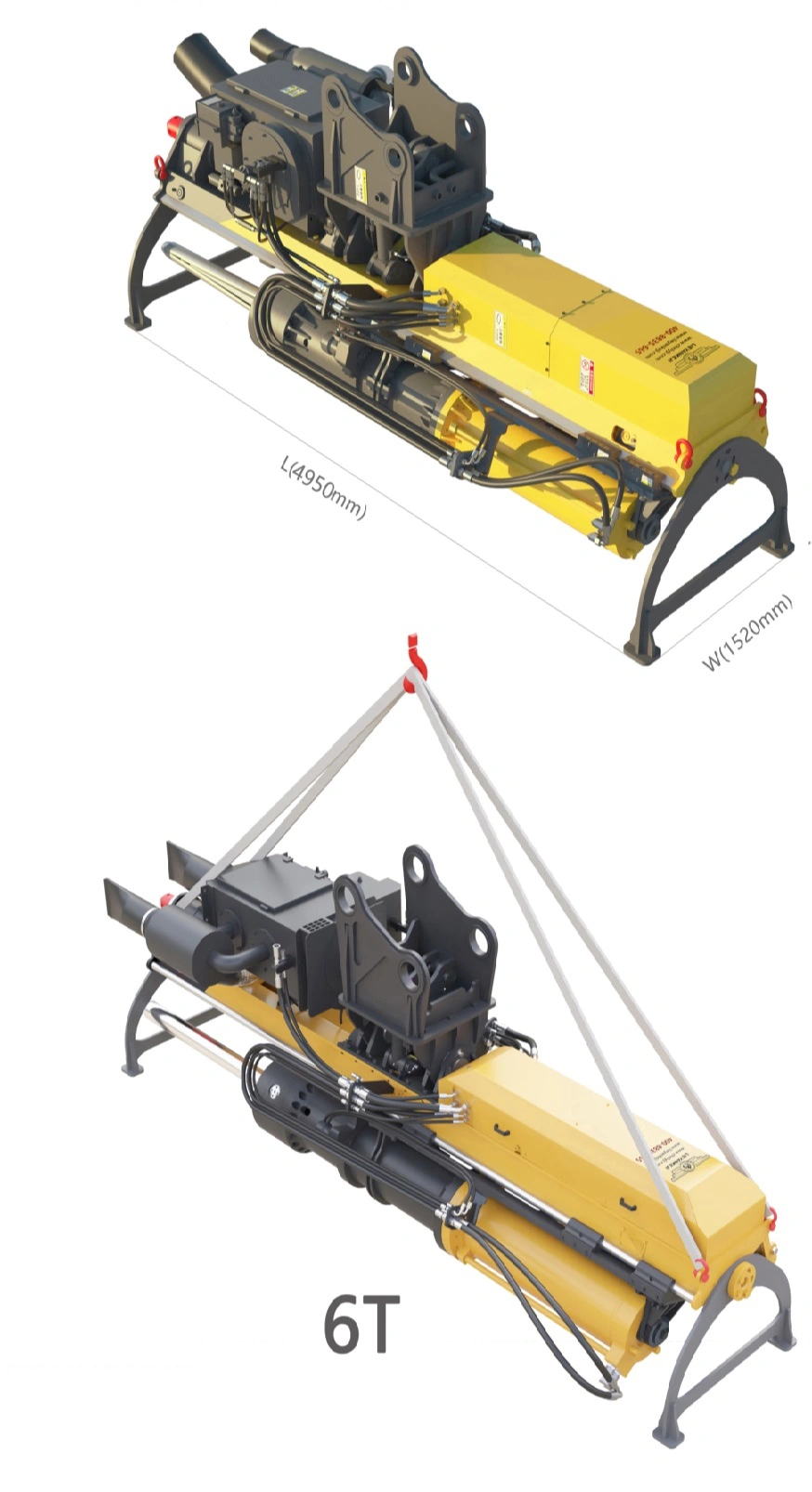

Overall specifications
| Total Weight | 7T |
| Overall Length | 4900mm |
| Overall Width | 1700mm |
Rock Drill Parameters
| Rated Power | 30kW |
| Drill Hole Diameter | Ø135mm |
| Drill Hole Depth | 1900mm |
| Drilling Speed | 0.8m/min |
| Operating Noise | Compliant with GB19872-2005 |

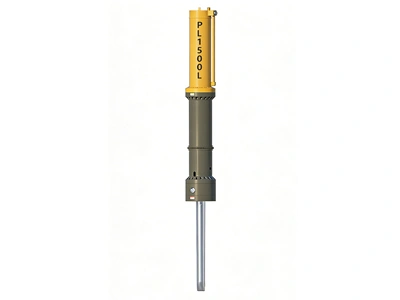

Splitting Machine Parameters
| Splitting Depth | 1250mm |
| Max. Splitting Force | 15000T |
| Rotation Angle | 120° |

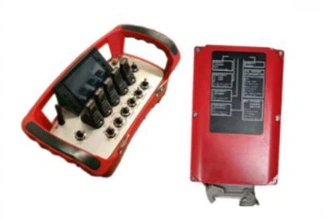

Remote Control System
| Effective Range | 50m |
| Digital Output Channels Force | 30 |
| Analog Output Channels | 14 |
| Adjacent Channel Rejection | >50dB |
Feed Beam
| Max. Drill Thrust Force | 40KN |
| Max. Splitter Retraction Force | 80KN |
Swing Unit
| Swing Force | 80KN |
| Swing Speed | 1rpm |

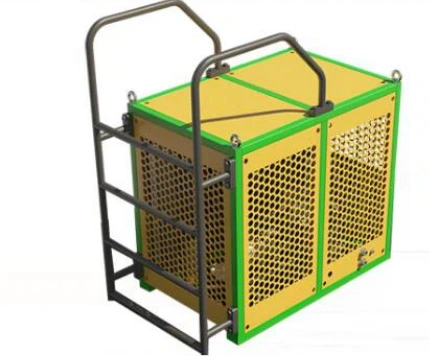

K76Y Hydraulic Air Compressor
| Free Air Delivery (FAD) | 7.5m³/min |

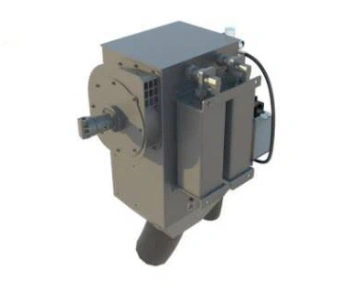

Vacuum Dust Collector
| Number of Filter Elements | 8 pcs |
Product Brochure
Download our catalog for details
Cycle time per hole (average)
Drilling: Approx. 2.5 min
Splitting: Approx. 40s
Positioning & swing: Approx. 50s

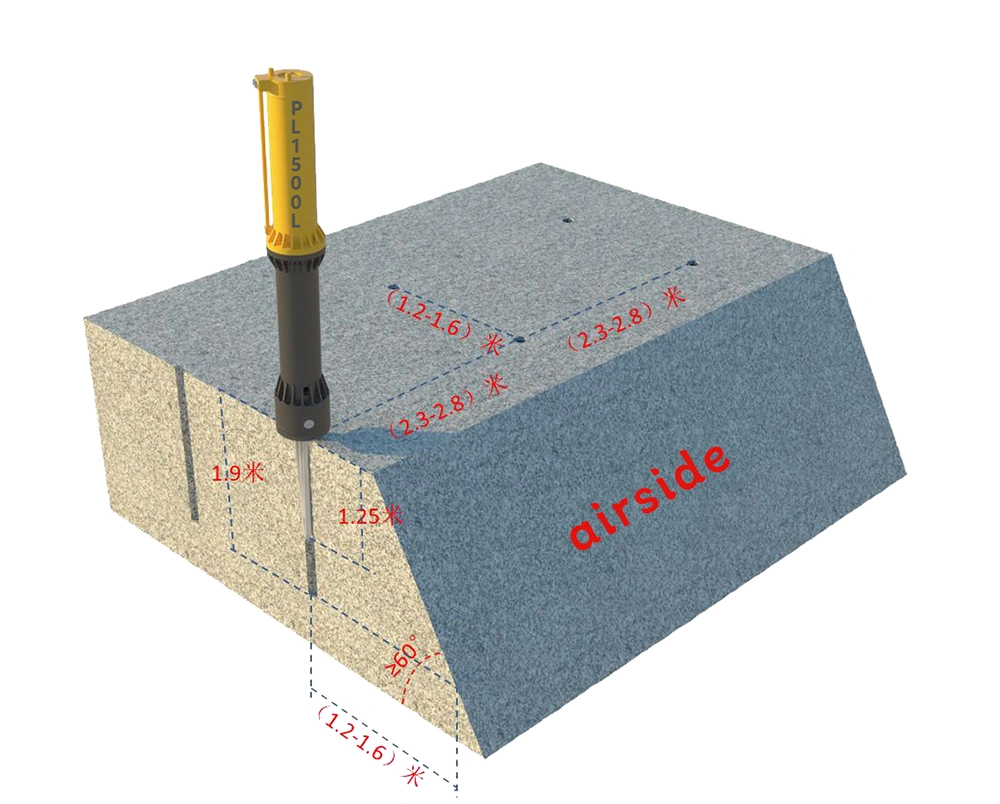

Theoretical yield per hole:
2.8m (Spacing)×1.6m (Burden)×1.25m (Splitting depth)
The PL-1500L rock drill splitter enables multi-functional operation, allowing operator to switch between precision rock drilling and high-force rock splitting within a single, high-performance unit.
