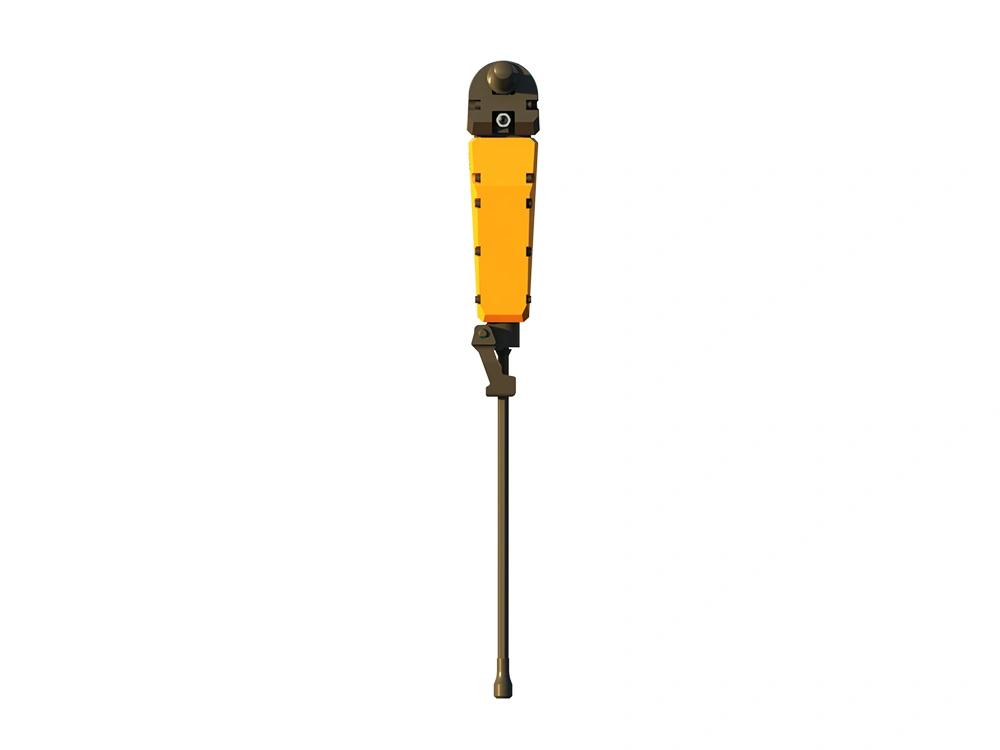

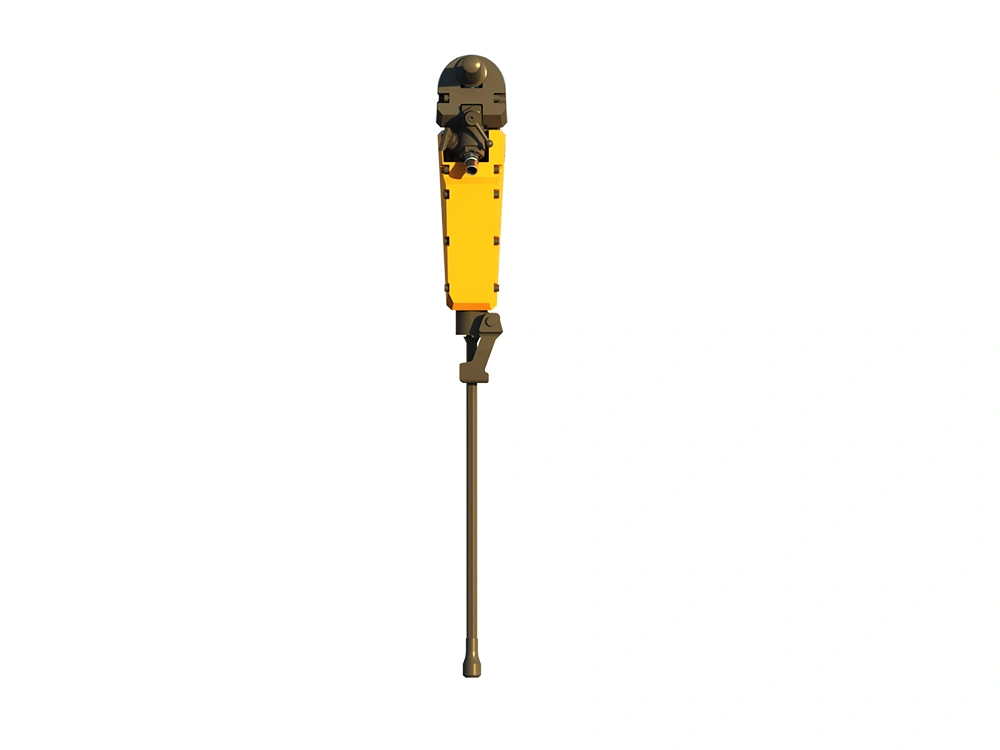

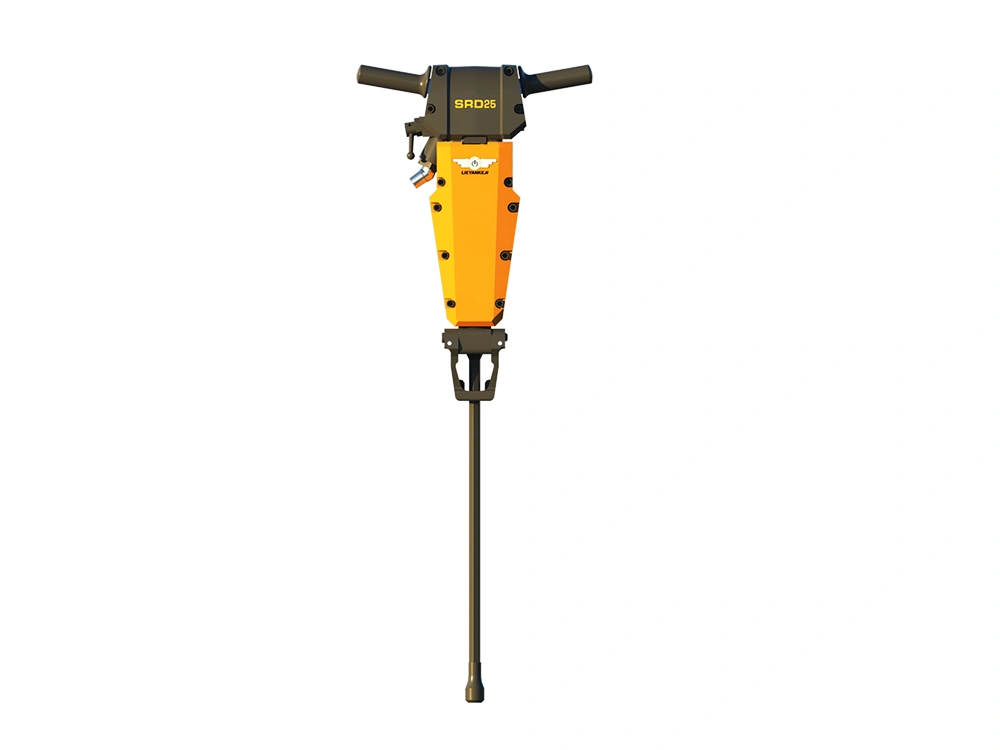

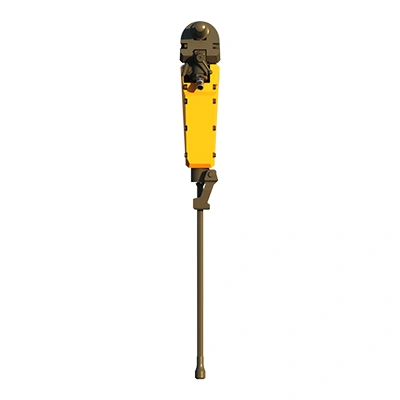

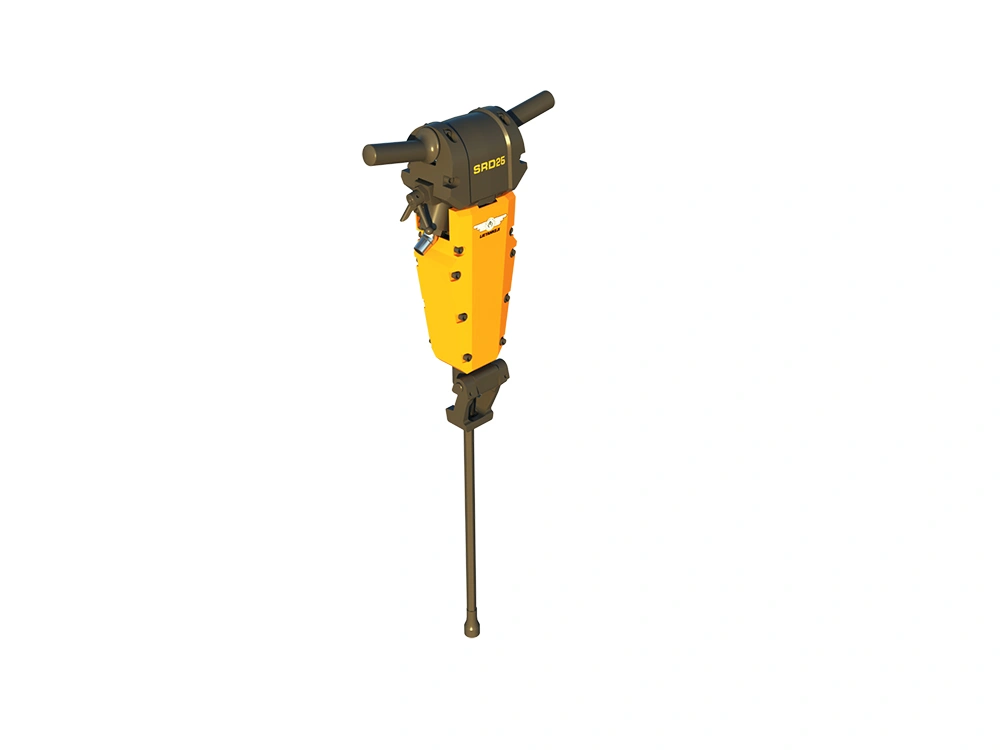

SRD25
Handheld Rock Drill Splitter
This handheld pneumatic rock drill achieves an 18% increase in drilling efficiency alongside a 20% reduction in operating noise. Engineered for superior sustainability, the drill features an optimized pneumatic dust collector for screw compressors, significantly enhancing both energy conservation and environmental performance.
Request a Quote →
Product Parameters

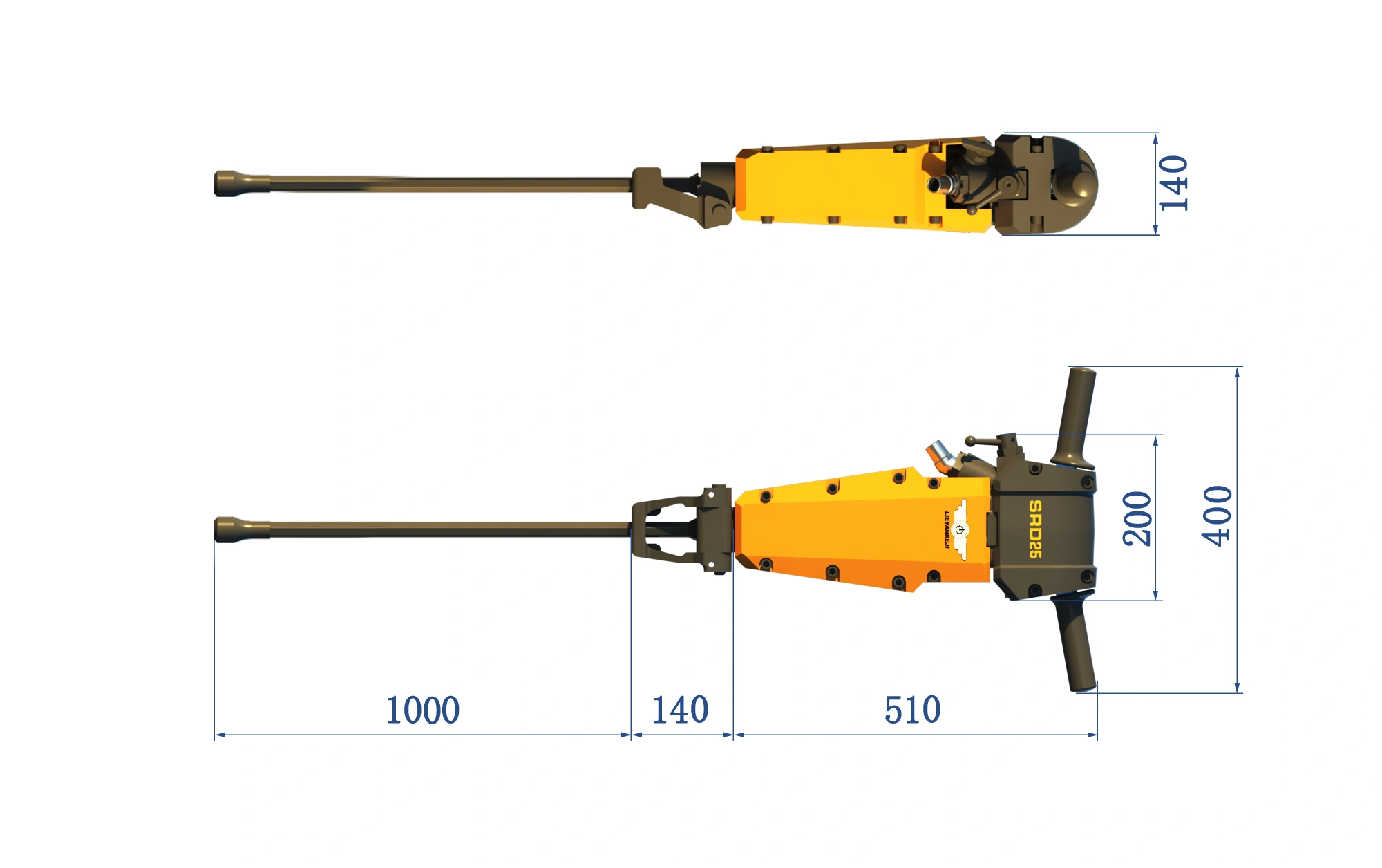

| Overall Length | 630mm |
| Air Consumption @ 6.0 bar | 39L/s |
| Impact Rate | 1950BPM |
| Rotation Speed | 200rpm |
| Penetration Rate | 270mm/min |
| Air Inlet Size | 19mm |
| Vibration Level (ISO 28927-10) | 9m/s2 |
| Guaranteed Sound Power Level (2000/14/EC) | 111dB(A) |
| Shank Size | 22×108mm |
Accessories

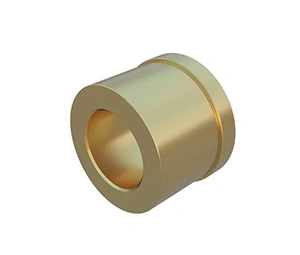

Bushing

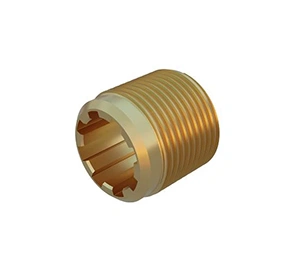

Rifle nut

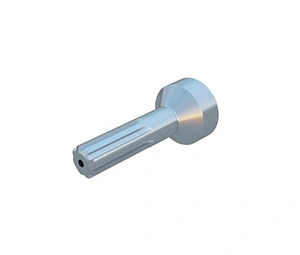

Piston

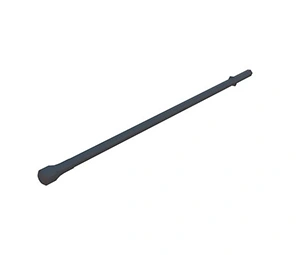

Drill rod

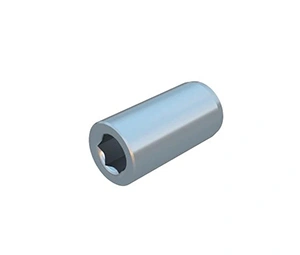

Shank adapter

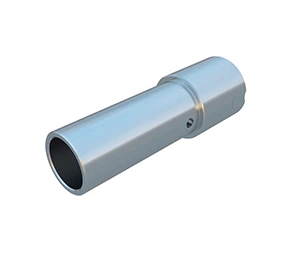

Rotation sleeve
